Range Rover P38
78
SEATS
NEW RANGE ROVER
4
REPAIR
BLADDER - LUMBAR SUPPORT - FRONT SEAT -
from 99MY
Service repair no - 78.60.01
Remove
1. Remove squab cover and squab foam as an
assembly.
See this section.

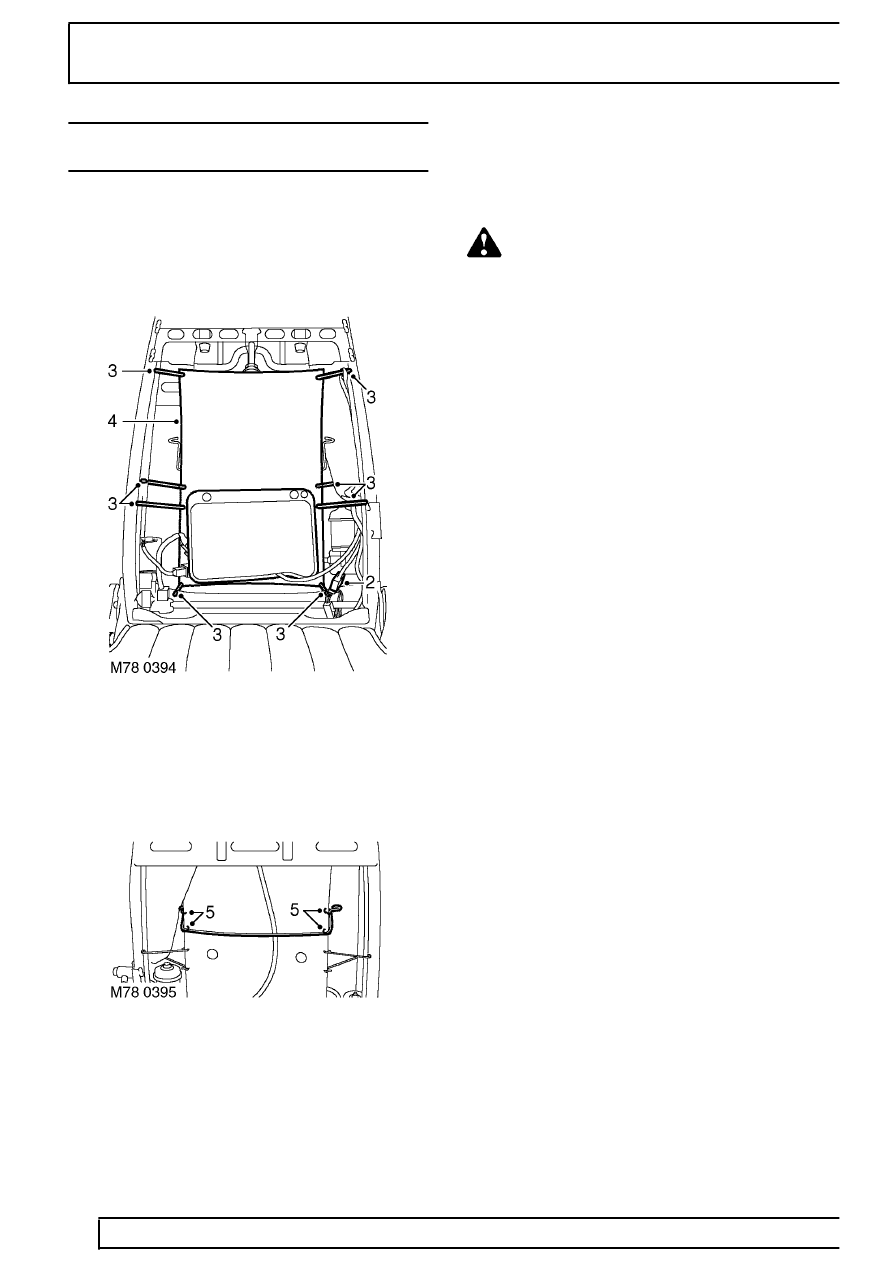

2. Disconnect lumbar pump multiplug.
3. Release 8 clips securing squab diaphragm and
bladder assembly to squab frame.
4. Remove diaphragm and bladder assembly.
Do not carry out further dismantling if
component is removed for access only.
5. Noting position of retention wire and hog rings
securing wire to diaphragm, remove hog rings
and retention wire.
Refit
6. Position retention wire to diaphragm and secure
with hog rings.
WARNING: Position and security of
retention wire is critical for effective airbag
performance.
7. Position diaphragm assembly and secure clips.
8. Connect lumbar pump multiplug.
9. Fit squab cover.
See this section.
