Range Rover P38
SEATS
33
REPAIR
REAR SEATS
Service repair no - 78.10.47/99
Remove

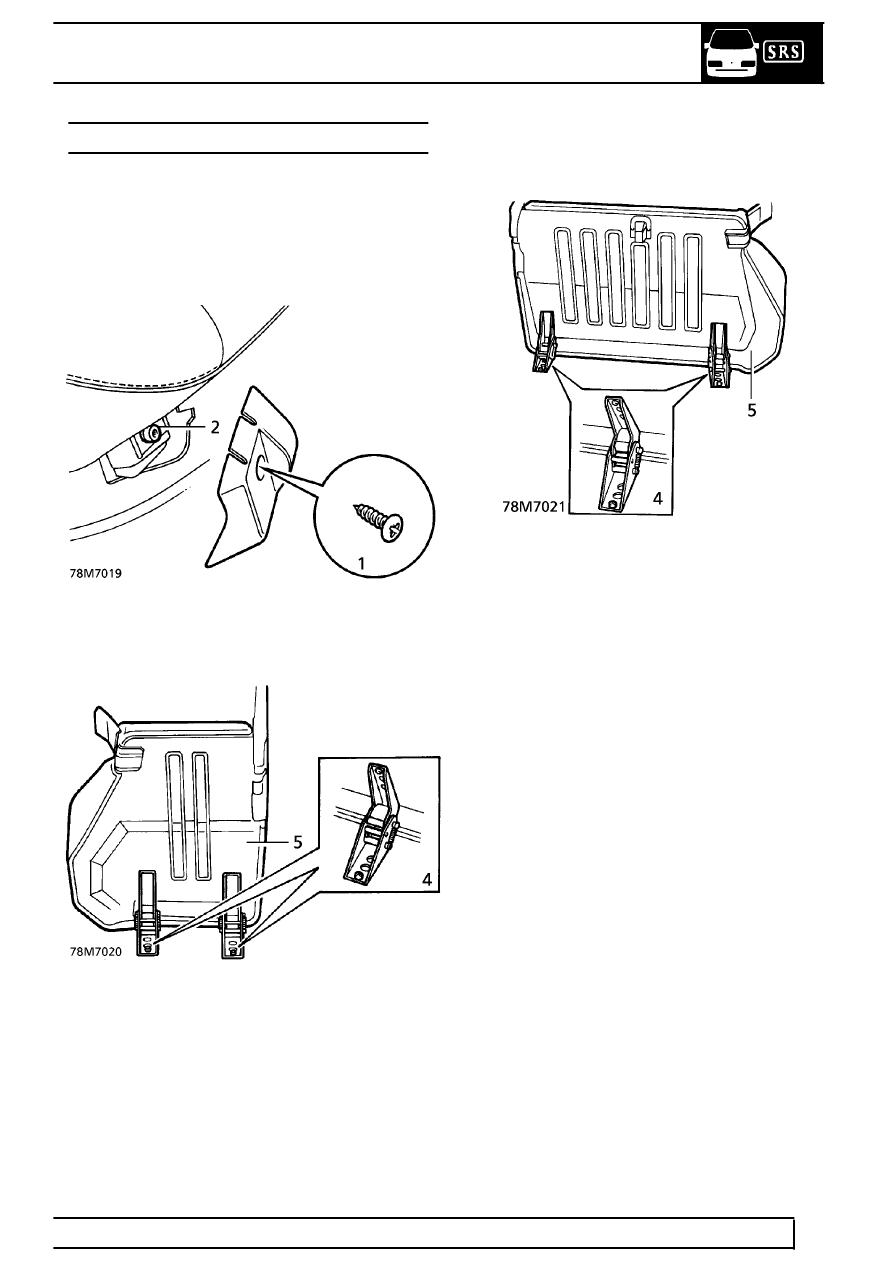

1. Remove screws securing seat bolt covers.
Remove covers.
2. Remove 2 front retaining bolts.
3. Release seat and fold forward.
4. Remove 2 rear retaining bolts.
5. Remove seat.
Refit
6. Position seat.
7. Fit front bolts. Do not tighten.
8. Fit rear bolts. Tighten to
29 Nm. (22 lbf.ft)
9. Tighten front bolts. Tighten to
29 Nm. (22 lbf.ft)
10. Fit bolt covers. Secure with screws.
