9. Clean surfaces using a lint-free rag. Ensure no
damage has occurred to mounting face of case.

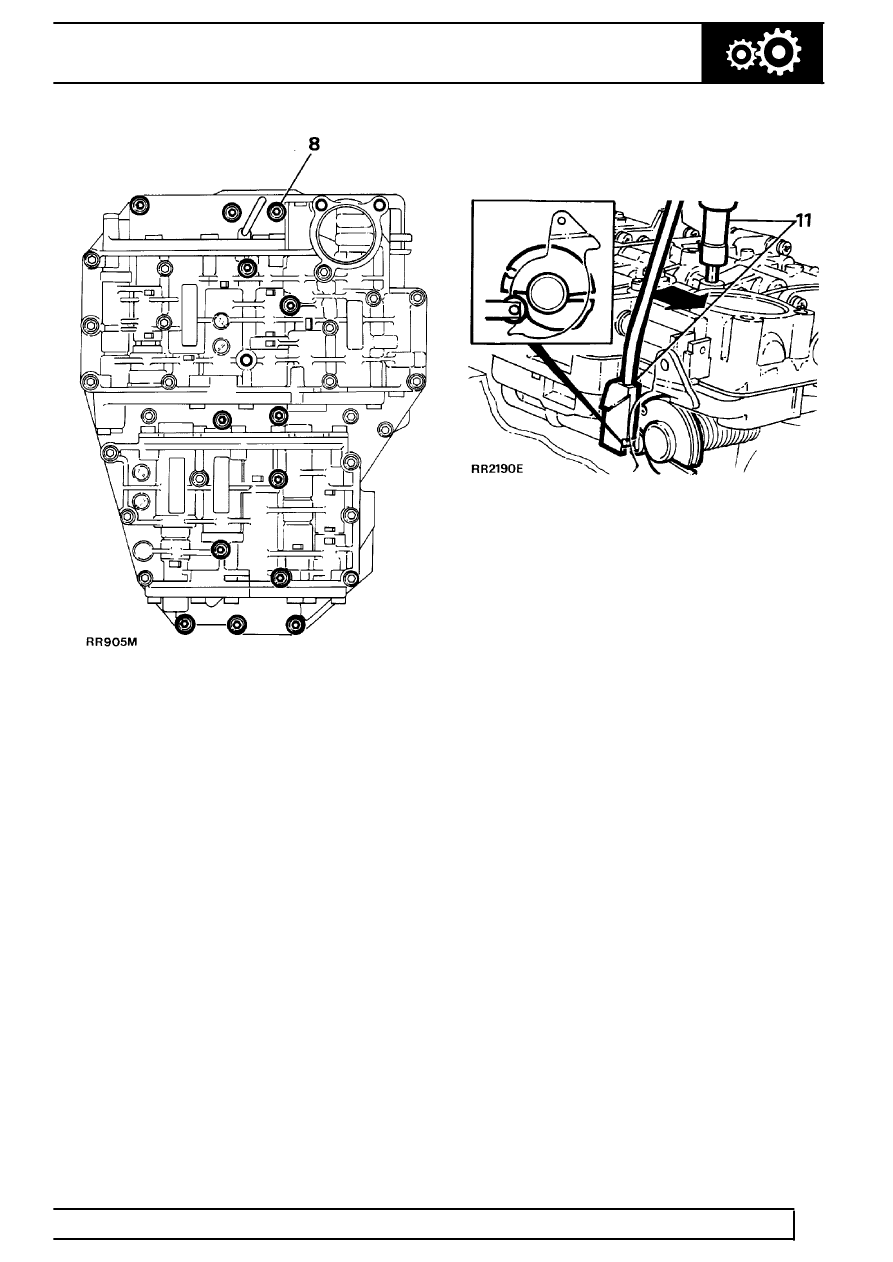

10. Fit control unit ensuring selector shaft locates
into gear shift fork. Loosely fit thirteen bolts.
11. Place selector linkage setting gauge LST109 in
position, gently press control unit against tool.
Tighten to
8Nm.

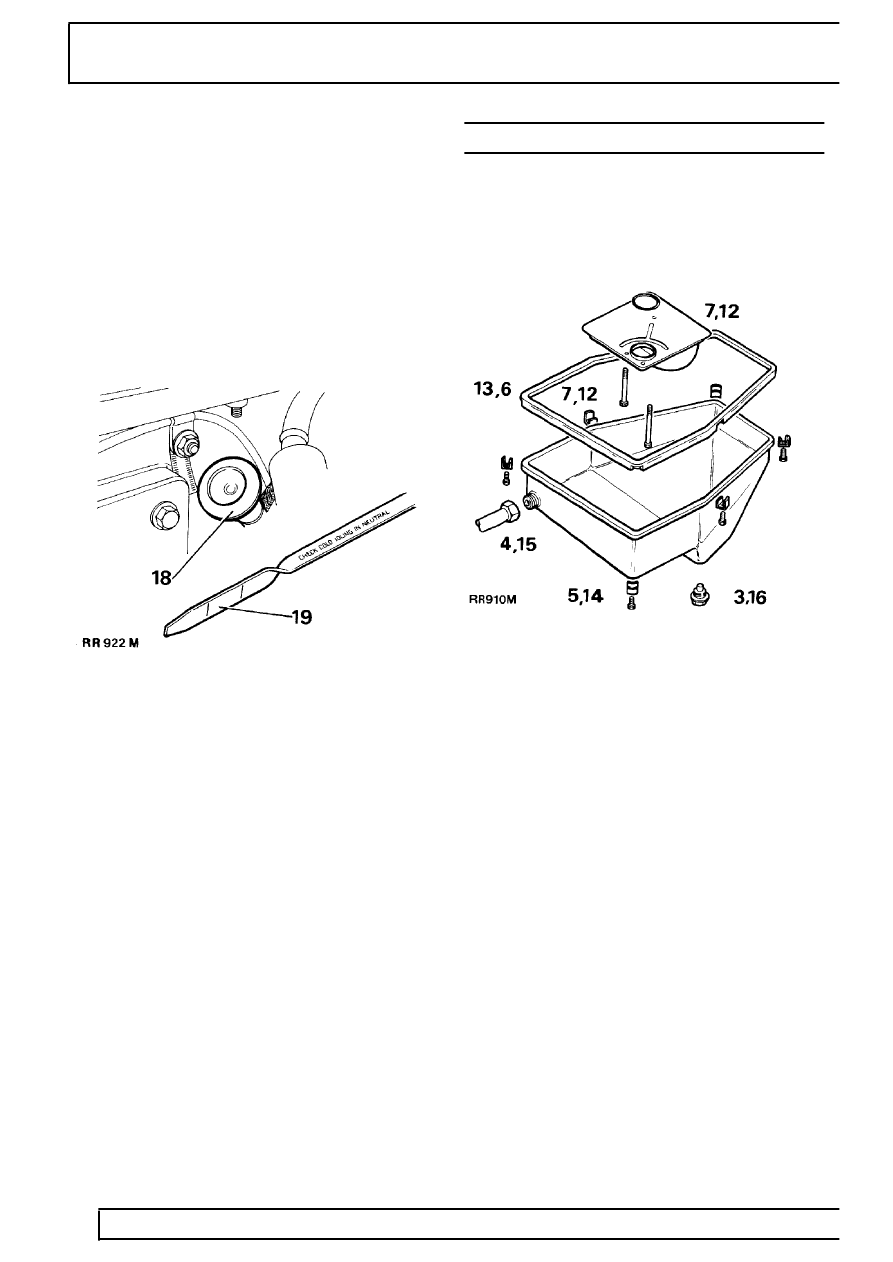

12. Remove setting gauge. Fit oil screen. Tighten to
8Nm.
13. Refit sump using a new gasket.
14. Secure with six retaining plates and bolts.
Tighten to
8 Nm.
15. Reconnect oil level tube. Tighten to
70 Nm.
16. Fit sump plug with new seal. Tighten to
10 Nm.
17. Reconnect battery negative lead.
18. Add correct quantity and grade of oil to gearbox.
See LUBRICANTS, FLUIDS AND
CAPACITIES, Information, Recommended
Lubricants and Fluids
19. Ensure vehicle is on level ground with park
brake applied. Check oil level with engine at idle,
neutral selected, after selecting each gear.
