COOLER - GEARBOX FLUID

Service repair no - 44.24.10

Remove

  1. Remove bonnet locking platform. See BODY, Exterior fittings.
  2. Position container underneath gearbox fluid cooler connections to collect any spillage.
Cooler - gearbox fluid – Position container underneath gearbox fluid cooler connections to collect any spillage.

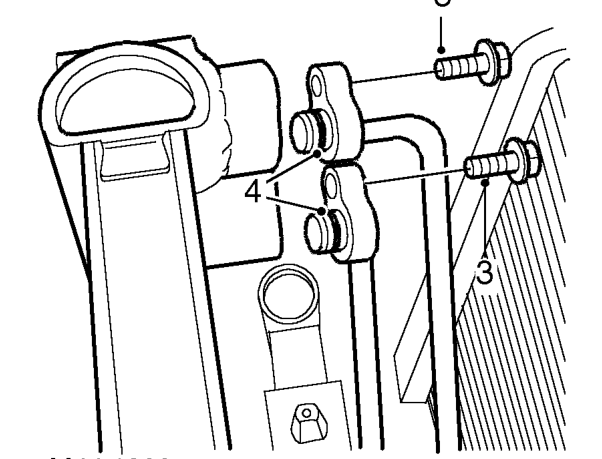

  1. Remove 2 bolts securing cooler pipe connections to fluid cooler.
  2. Release connections from cooler and discard ’O’ rings.

CAUTION: Plug the connections.

Cooler - gearbox fluid – Release connections from cooler and discard ’O’ rings.

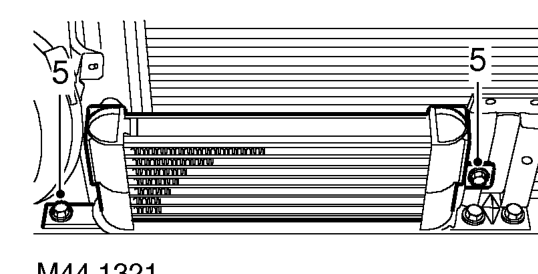

  1. Remove 2 bolts securing cooler to body and remove cooler.

Refit

  1. Clean fluid cooler and pipe connections.
  2. Fit fluid cooler and secure with bolts.
  3. Using new ’O’ rings connect pipes to cooler and tighten bolts to 14 Nm.
  4. Fit bonnet locking platform. See BODY, Exterior fittings.
  5. Top-up gearbox fluid level. See MAINTENANCE.
