SOLENOID - SHIFT LOCK

Service repair no - 44.15.36

Remove

  1. Remove gear lever assembly. See this section.

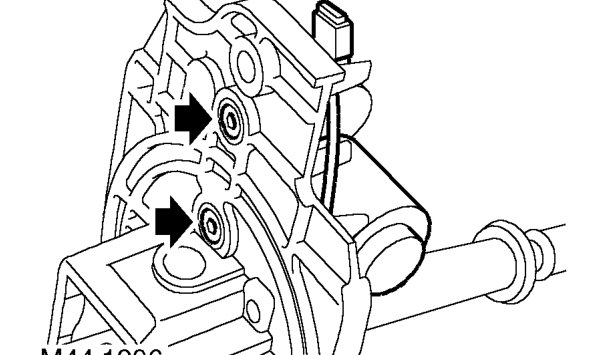

Solenoid - shift lock – Remove gear lever assembly. See this section.
  1. Remove 2 Allen bolts securing shift lock solenoid.
  2. Release shift lock solenoid from gear lever housing and remove solenoid.

Refit

  1. Position shift lock solenoid and engage to gear lever housing.
  2. Fit Allen bolts securing shift lock solenoid and tighten to 15 Nm.
  3. Fit gear lever assembly. See this section.

DIFFERENTIAL SPEED SENSOR

Service repair no - 44.15.47

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Support on safety stands.

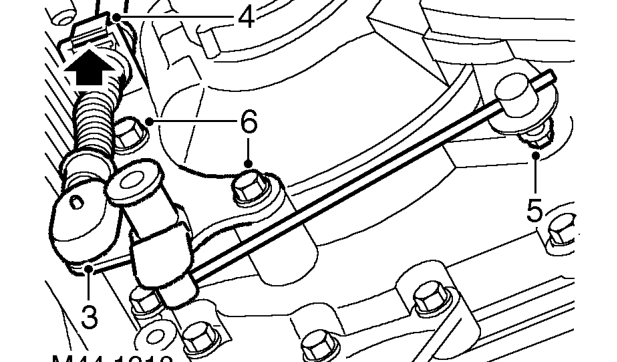

Differential speed sensor – Raise rear of vehicle.
  1. Release gear selector cable from selector linkage.
  2. Release selector cable from abutment bracket by pressing tab upwards as shown.
  3. Loosen nut securing connecting rod to selector bracket.
  4. Remove 2 bolts securing abutment bracket to gearbox, release connecting rod from selector bracket and remove abutment bracket.
