Road speed transducer

Refit

1. Clean primary bearing bore and shaft.
2. Clean sealant from threads in fluid pump drive shaft and clean fluid pump housing.

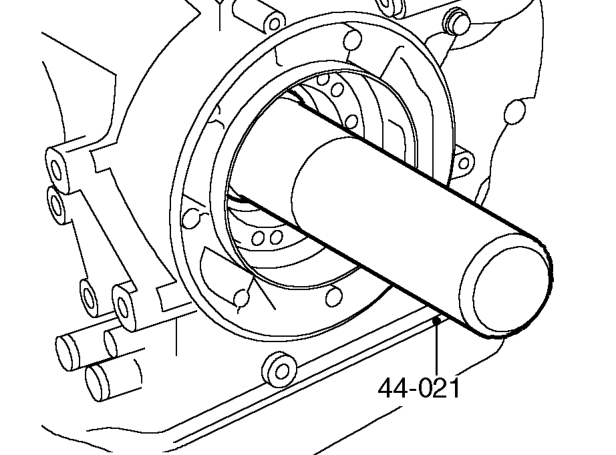

3. Position primary bearing with numbers on bearing facing outwards.

4. Drift in primary bearing using tool 44-021.
5. Fit and tighten nut using an air impact wrench for sufficient duration until a minimum torque of 180 Nm is achieved.
6. Fit new belleville washer.
7. Lubricate and fit new ’O’ rings to fluid pump.
8. Position fluid pump into gearbox, aligning feeder and pitot tube channels.
9. Fit 5 bolts and tighten in a diagonal sequence to 10 Nm.
10. Fit gearbox primary cover seal. See this section.
11. Position resonator and secure with bolts.
12. Fit air cleaner mounting bracket to body, fit and tighten 3 bolts.
13. Fit fuel filter to air cleaner mounting bracket and secure with nuts.
14. Secure hand brake cables and gear selector cable to clips.
15. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
16. Fit road wheel and tighten to correct torque. See INFORMATION, Torque wrench settings.
17. Lower vehicle.
18. Top-up gearbox fluid. See MAINTENANCE.

ROAD SPEED TRANSDUCER

Service repair no - 44.38.08

Remove

1. Disconnect battery earth lead.

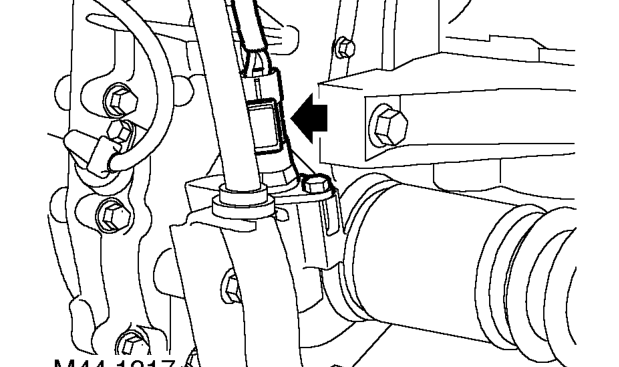

2. Remove engine compartment access panel.See BODY, Exterior fittings.

3. Disconnect multiplug from transducer.
4. Remove bolt securing transducer to gearbox.
5. Remove transducer and discard ’O’ ring.

Refit

1. Clean sealing faces of transducer and gearbox.
2. Lubricate new ’O’ ring with gearbox fluid and fit to transducer.
3. Fit transducer to gearbox and tighten to 9 Nm.
4. Connect multiplug to transducer.
5. Fit engine compartment access panel. See BODY, Exterior fittings.
6. Connect battery earth lead.
