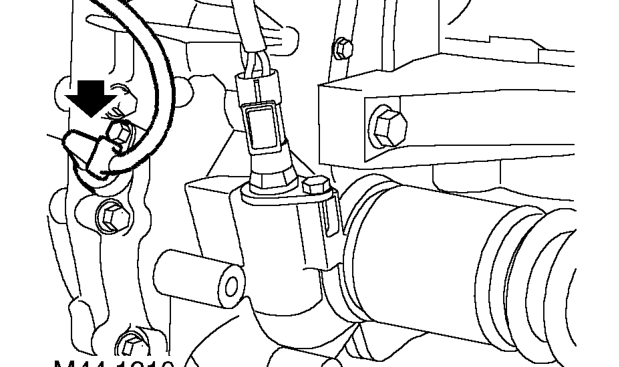

7. Disconnect multiplug from speed sensor.
8. Remove bolt securing sensor to gearbox.
9. Remove sensor and discard ’O’ ring.

Refit

1. Clean sealing faces of sensor and gearbox.
2. Lubricate new ’O’ ring with gearbox fluid and fit to sensor.
3. Fit sensor to gearbox and tighten bolt to 9 Nm.
4. Connect multiplug to harness.
5. Fit abutment bracket to gearbox ensuring connecting rod is located into selector bracket. Tighten bolts to 25 Nm.
6. Tighten nut securing connecting rod to selector bracket to 6 Nm.

CAUTION: Do not exceed the specified torque.

7. Connect gear selector cable to selector linkage.
8. Remove stand(s) and lower vehicle.
9. Connect battery earth lead.

SWITCH - STEERING WHEEL REMOTE

Service repair no - 44.15.70

Remove

1. Disconnect battery earth lead.

2. Release horn switch from steering wheel and position aside.

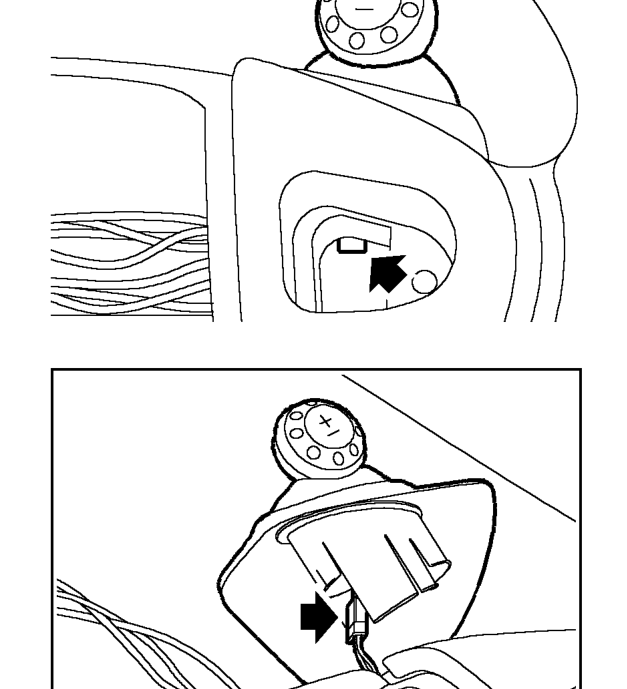

3. Release clip securing remote switch and release switch from steering wheel.
4. Disconnect remote switch multiplug and remove switch from steering wheel.

Refit

1. Position remote switch, connect multiplug and secure switch to steering wheel.
2. Position horn switch and secure in steering wheel.
3. Connect battery earth lead.
