Hose/pipe - feed - intermediate to gearbox

HOSE/PIPE - FEED - INTERMEDIATE TO GEARBOX

Service repair no - 44.24.30

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

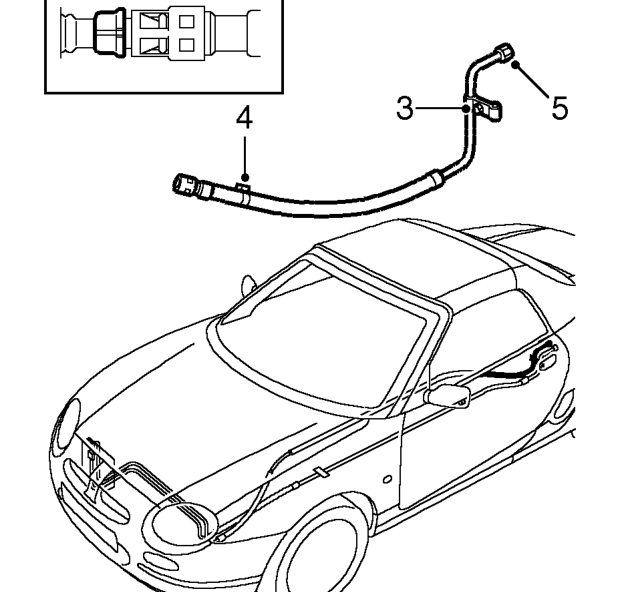

2. Position container to catch spillage.

3. Remove bolt securing pipe clamp and remove pipe clamp.
4. Loosen union on gearbox and release pipe from gearbox, remove and discard ’O’ ring.
5. Remove release catch and refit in reverse position. Release pipe from intermediate pipe and remove pipe.
6. Refit release catch in safe position.

CAUTION: Plug the connections.

Refit

1. Clean pipe end and mating faces.
2. Connect pipe to intermediate pipe.
3. Using a new ’O’ ring, position pipe to gearbox and tighten union to 14 Nm. .
4. Position pipe clamp, fit and tighten clamp bolt to 10 Nm.
5. Remove stand(s) and lower vehicle.
6. Top-up gearbox fluid level. See MAINTENANCE.
