Seal - input shaft

Refit

1. Clean mating faces of engine and gearbox.
2. With assistance, fit gearbox and locate onto dowels.
3. Position mounting plate and fit 4 bolts securing gearbox to engine. Tighten bolts to 80 Nm.
4. Connect speed sensor and speedometer transducer multiplugs.
5. Fit flywheel rear cover and secure with bolts.
6. Fit starter motor and tighten bolts to 80 Nm.
7. Fit flywheel cover to gearbox and secure with bolt.
8. Fit exhaust heat shield and secure with bolts.
9. Connect multiplug to actuator control motor and secure lead to clip.
10. Connect Lucar to starter solenoid.
11. Fit engine and gearbox assembly. See ENGINE, Repairs.

SEAL - INPUT SHAFT

Service repair no - 44.20.17

Remove

1. Remove gearbox assembly. See this section.

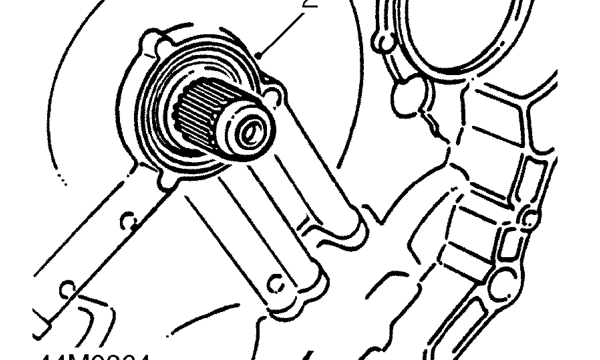

2. Remove and discard input shaft seal using suitable lever.

Refit

1. Clean seal housing and input shaft.
2. Lubricate new seal with gearbox fluid and fit onto input shaft.

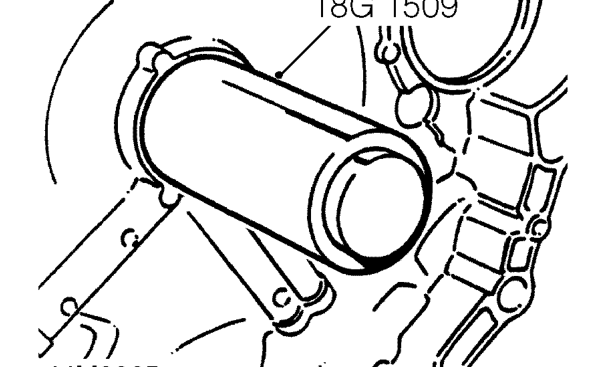

3. Push seal into place using tool 18G 1509 .
4. Refit gearbox assembly. See this section.
