MG MGF Factory Workshop Manual (1995-2000)11 · Automatic gearbox - EM-CVT
11 · Transmission

Microswitch - manual/sport and +/- switch

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Microswitch - manual/sport and +/- switch
Automatic gearbox - EM-CVTMicroswitch - manual/sport and +/- switch

MICROSWITCH - MANUAL/SPORT AND +/- SWITCH

Service repair no - 44.15.72

Remove

  1. Remove gear lever assembly. See this section.

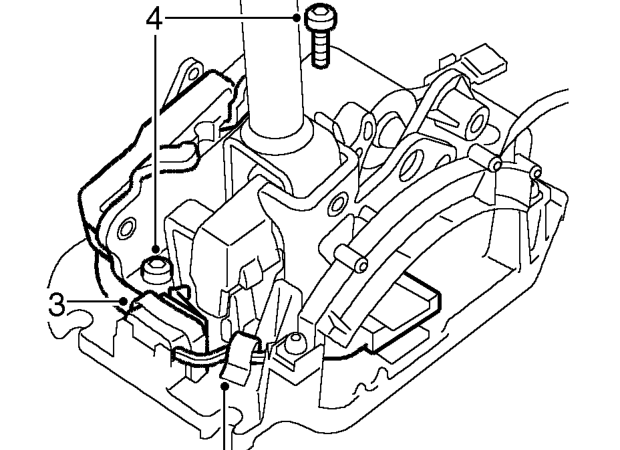

Microswitch - manual/sport and +/- switch – Remove gear lever assembly. See this section.
  1. Release clip securing harness to gear lever housing.
  2. Remove clip securing manual/sport microswitch and collect microswitch spacer.
  3. Remove 2 Allen bolts securing +/- switch to gear lever housing and remove switch assembly.

Refit

  1. Position +/- switch to gear lever housing. Fit Allen bolts and tighten to 12 Nm.
  2. Fit microswitch spacer, position manual/sport microswitch and secure with clip.
  3. Secure harness clip to gear lever housing.
  4. Fit gear lever assembly. See this section.

GEARBOX INTERFACE UNIT (GIU)

Service repair no - 44.15.81

Remove

  1. Disconnect battery earth lead.

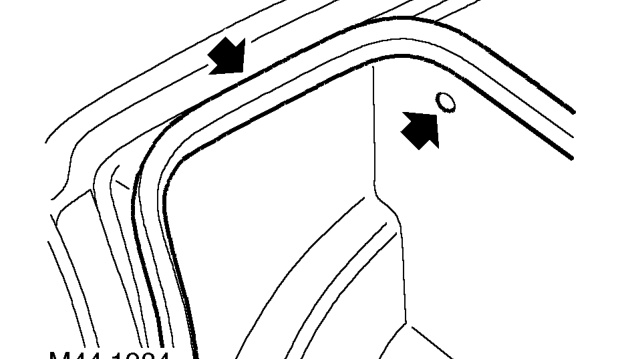

Gearbox interface unit (giu) – Disconnect battery earth lead.
  1. Release boot lid aperture seal from LH side of aperture flange.
  2. Remove clip securing LH side of luggage compartment trim and release trim for access to GIU.

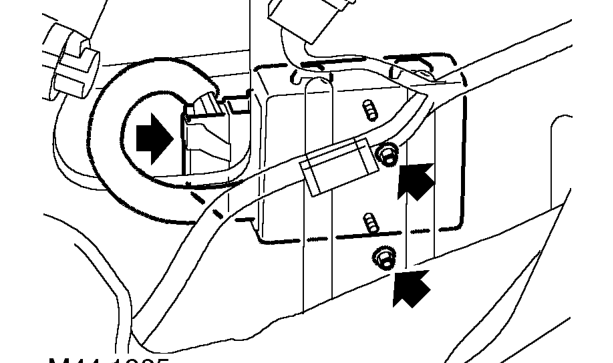

Gearbox interface unit (giu) – Remove clip securing LH side of luggage compartment trim and release trim for access to GI
  1. Remove 2 nuts securing GIU to body.
  2. Release GIU, disconnect multiplug and remove GIU.
