SWITCH - PRND

Service repair no - 44.15.13

Remove

  1. Remove centre console. See BODY, Interior trim components.

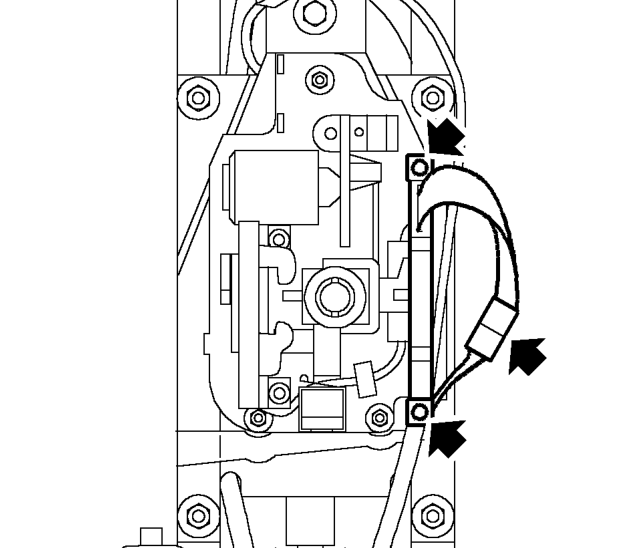

Switch - prnd – Remove centre console. See BODY, Interior trim components.
  1. Disconnect PRND switch multiplug.
  2. Remove 2 screws securing PRND switch and remove switch.

Refit

  1. Position PRND switch, engage pin to gear lever and secure switch with screws.
  2. Connect PRND switch multiplug.
  3. Fit centre console. See BODY, Interior trim components.

PARK/NEUTRAL AND REVERSE LIGHT SWITCH

Service repair no - 44.15.15

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Position container to collect fluid loss from gearbox.

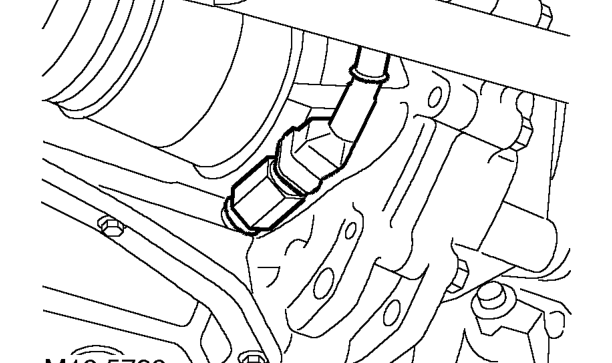

Park/neutral and reverse light switch – Position container to collect fluid loss from gearbox.
  1. Disconnect multiplug from switch.
  2. Loosen and remove switch from gearbox.
  3. Remove and discard ’O’ ring from switch.

Refit

  1. Clean switch and mating face of gearbox.
  2. Lubricate new ’O’ ring with gearbox fluid and fit to switch.
  3. Fit switch to gearbox and tighten to 12 Nm.
  4. Connect multiplug to switch.
  5. Remove stand(s) and lower vehicle.
  6. Top-up gearbox fluid level. See MAINTENANCE.
  7. Connect battery earth lead.
