Automatic gearbox - EM-CVTHose/pipe - intermediate - feed

HOSE/PIPE - INTERMEDIATE - FEED

Service repair no - 44.24.28

Remove

  1. Remove front underbelly panel. See BODY, Exterior fittings.

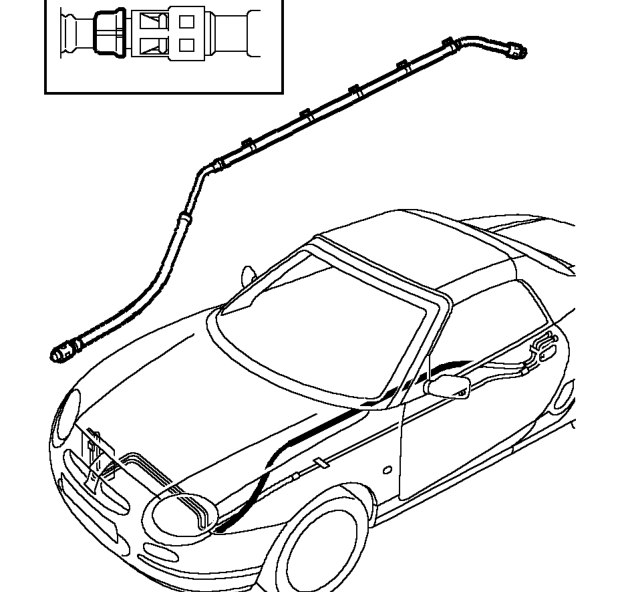

Hose/pipe - intermediate - feed – Remove front underbelly panel. See BODY, Exterior fittings.
  1. Release pipe from 5 clips.
  2. Position container to catch spillage.
  3. Remove pipe release catches and refit in reverse position.
  4. Release hoses from intermediate pipe and remove intermediate pipe.
  5. Refit release catches in safe position.

CAUTION: Plug the connections.

Refit

  1. Clean pipe end and mating faces.
  2. Position intermediate pipe and connect to hoses.
  3. Secure intermediate pipe with new cable ties.
  4. Fit front underbelly panel. See BODY, Exterior fittings.
  5. Top-up gearbox fluid level. See MAINTENANCE.
