Workshop Manuals Factory service & repair MG
MG MGF Factory Workshop Manual (1995-2000)11 · Automatic gearbox - EM-CVT
11 · Transmission

Primary bearing

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs › Primary bearing
Automatic gearbox - EM-CVTPrimary bearing · page 1 of 2

PRIMARY BEARING

Service repair no - 44.36.14

Remove

  1. Raise rear of vehicle.
  2. Remove LH rear road wheel.

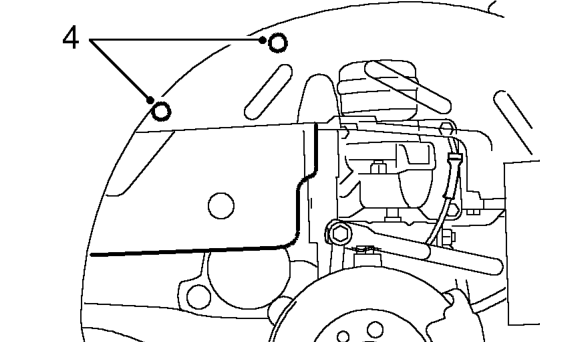

  3. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Primary bearing – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

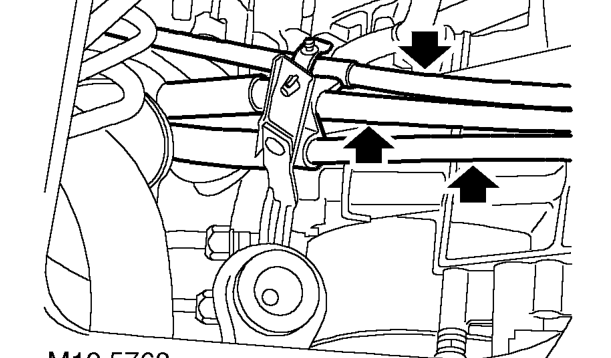

  1. Remove 2 bolts securing resonator to body.
Primary bearing – Remove 2 bolts securing resonator to body.

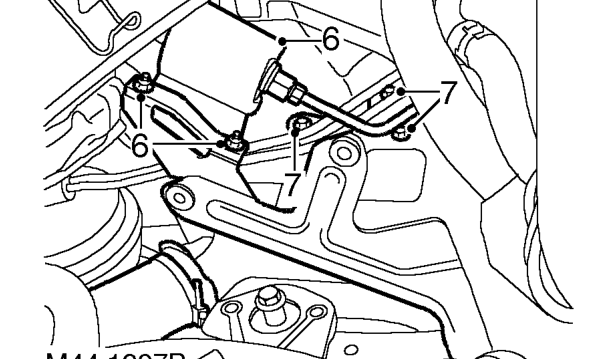

  1. Release 2 hand brake cables and gear selector cable from clips on air cleaner mounting bracket.
Primary bearing – Release 2 hand brake cables and gear selector cable from clips on air cleaner mounting bra
  1. Remove 2 nuts securing fuel filter to air cleaner mounting bracket and release filter from bracket.
  2. Remove 3 bolts securing air cleaner mounting bracket to body and remove bracket.
  3. Release resonator to increase access for bearing removal.

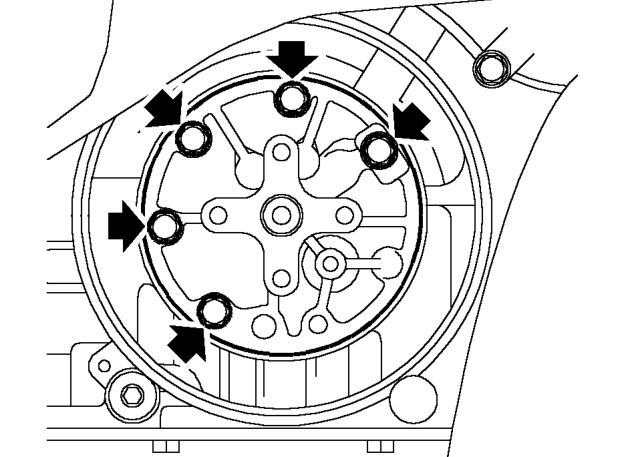

  4. Remove gearbox primary cover seal.5 See this section.
Primary bearing – Remove gearbox primary cover seal.5 See this section.
  1. Remove 5 remaining bolts securing fluid pump.
  2. With care, position 2 levers 180 ° apart and remove fluid pump.

NOTE: To prevent damage to primary housing, place 2 pieces of wood between levers and primary housing when removing oil pump.
