Automatic gearbox - EM-CVTPrimary bearing · page 2 of 2
Diagram

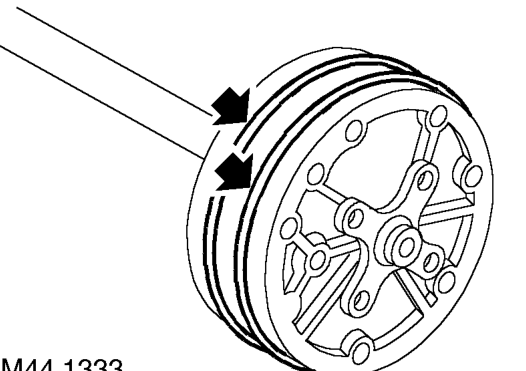

  1. Remove and discard 2 ’O’ rings from oil pump.
Remove and discard 2 ’O’ rings from oil pump.

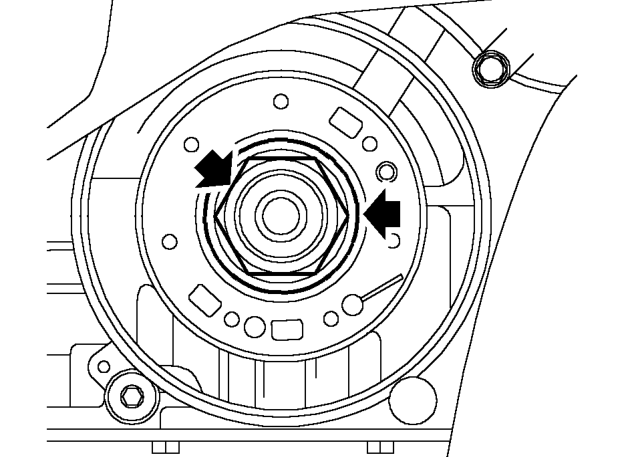

  1. Remove and discard belleville washer.
  2. Using an air impact wrench with a torque capacity of ± 300 Nm, remove primary bearing nut.

NOTE: Initially start to undo nut with the impact wrench in the minimum position. Increase torque until nut is released.

  1. Using a small screwdriver, lever out seal from primary bearing.
Using a small screwdriver, lever out seal from primary bearing.

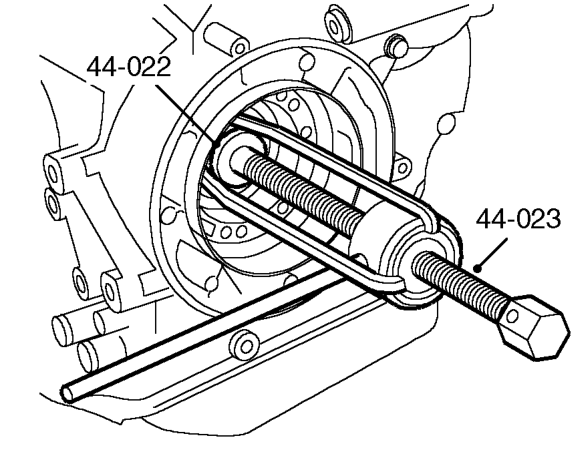

  1. Position thrust button 44-022 into primary shaft.
  2. Assemble tool 44-023 underneath the exterior ring of primary bearing.
  3. Tighten centre bolt of tool 44-023 and remove primary bearing.
