LEVER - GEAR CHANGE

Service repair no - 44.15.04

Remove

  1. Disconnect battery earth lead.
  2. Make the SRS system safe. See RESTRAINT SYSTEMS, Precautions.
  3. Remove centre console. See BODY, Interior trim components.
Lever - gear change – Remove centre console. See BODY, Interior trim components.

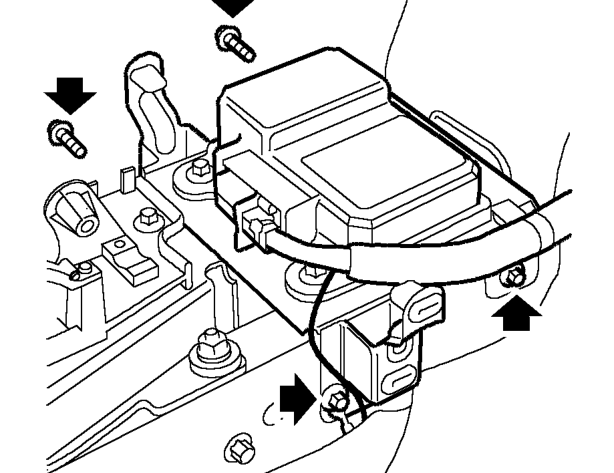

  1. Remove 4 Torx bolts securing SRS DCU support bracket and release earth lead. Position support bracket aside.
Lever - gear change – Remove 4 Torx bolts securing SRS DCU support bracket and release earth lead. Position supp

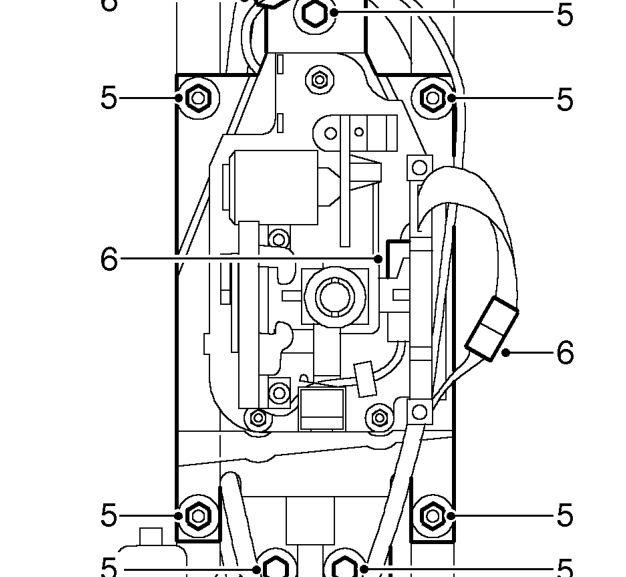

  1. Remove 3 bolts and 4 nuts securing gear lever assembly.
  2. Disconnect 3 multiplugs from gear lever assembly.
  3. Release gear lever from floor tunnel to access gear change cable.
Lever - gear change – Release gear lever from floor tunnel to access gear change cable.

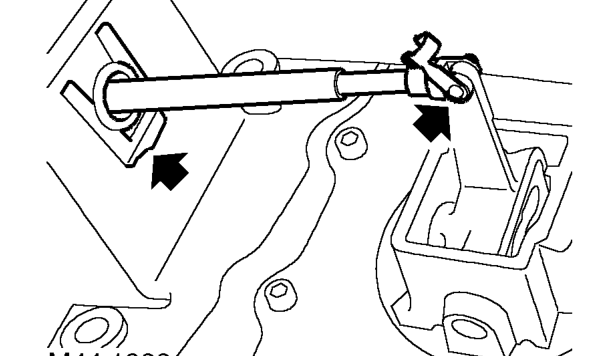

  1. Remove clevis pin and ’C’ washer securing cable to gear lever and remove gear lever assembly.
