Lever - gear change (page 2 of 2)

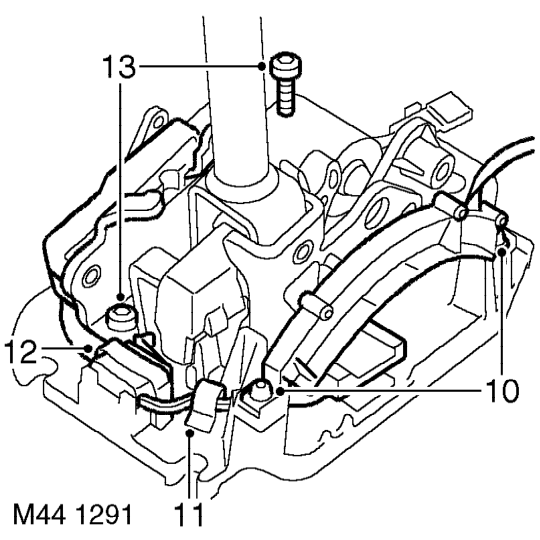

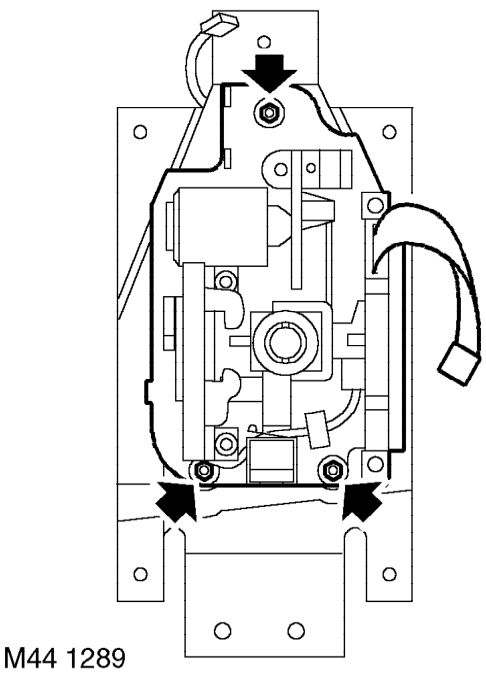

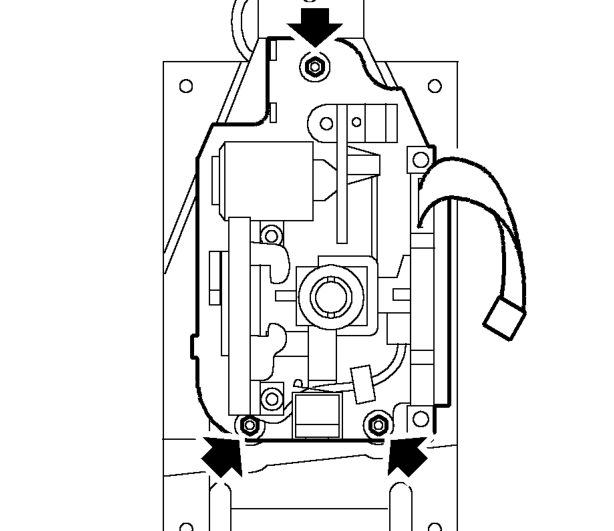

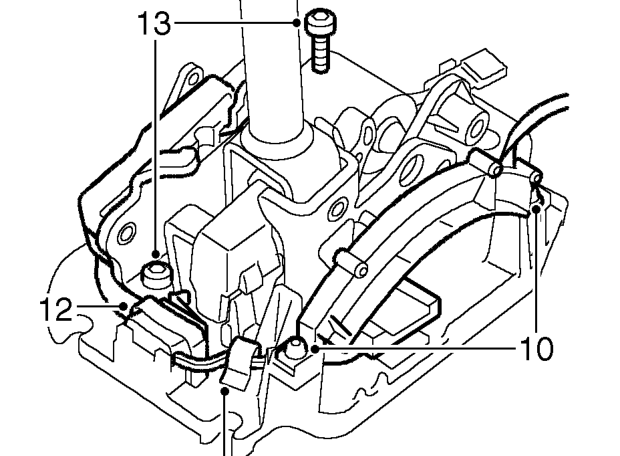

9. Remove 3 nuts and bolts securing gear lever to support bracket and remove lever.

10. Remove 2 screws securing selector slide mechanism and remove selector slide.
11. Remove microswitch harness clip from gear lever housing.
12. Remove clip securing microswitch and collect microswitch spacer.

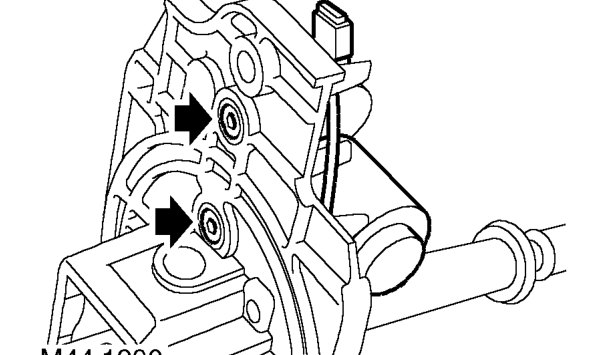

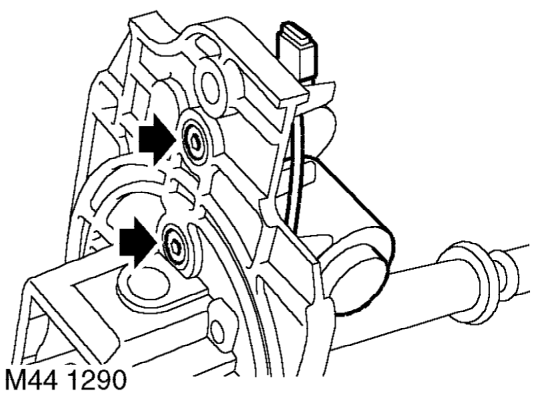

13. Remove 2 bolts securing sequential gear change microswitch and remove microswitch assembly.

14. Remove 2 bolts securing park solenoid to gear lever.
15. Release park solenoid from gear lever and remove park solenoid.

Refit

1. Fit sequential gear change microswitch. Fit bolts and tighten to 12 Nm.
2. Fit microswitch spacer, position microswitch and secure with clip.
3. Secure microswitch harness clip.
4. Position park solenoid, fit bolts and tighten to 15 Nm.
5. Position selector slide and secure with screws.
6. Position lever to support bracket. Fit bolts and tighten to 10 Nm.
7. Position lever assembly to cable and secure with ’C’ washer and clevis pin.
8. Position lever assembly to tunnel and connect gear lever multiplugs.
9. Fit nuts and bolts securing lever assembly to floor and tighten to 10 Nm.
10. Position SRS DCU and align earth lead. Fit Torx bolts and tighten to 10 Nm.
11. Fit centre console. See BODY, Interior trim components.
12. Connect battery earth lead.
