Automatic gearbox - EM-CVTSteptronic (EM-CVT) gearbox · page 1 of 2

Refit

  1. Position new GIU and connect multiplug.
  2. Fit GIU to body and secure with nuts.
  3. Refit trim and secure with clip.
  4. Fit boot lid aperture seal to flange.
  5. Connect battery earth lead.

STEPTRONIC (EM-CVT) GEARBOX

Service repair no - 44.20.02/99

Remove

  1. Remove engine and gearbox assembly. See ENGINE, Repairs.

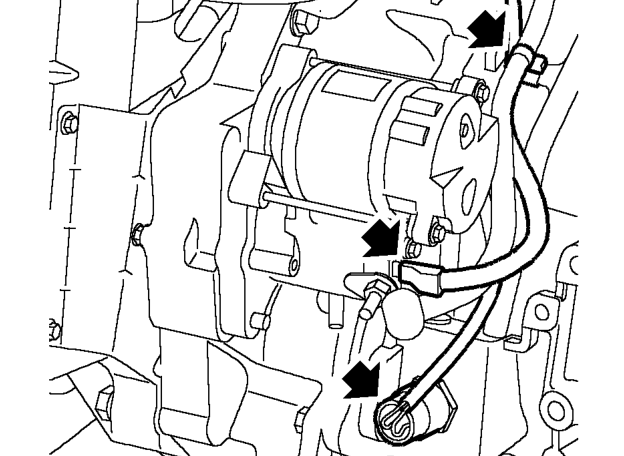

Steptronic (em-cvt) gearbox – Remove engine and gearbox assembly. See ENGINE, Repairs.
  1. Release Lucar from starter solenoid.
  2. Disconnect multiplug from actuator control motor and release lead from clip.

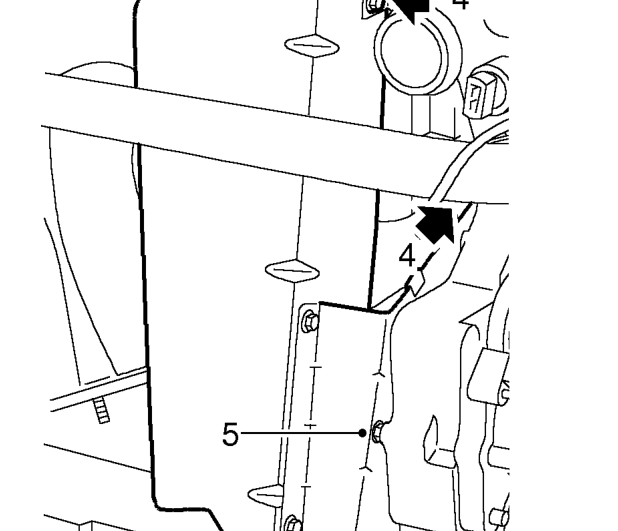

Steptronic (em-cvt) gearbox – Disconnect multiplug from actuator control motor and release lead from clip.
  1. Remove 3 bolts securing exhaust heat shield and remove shield.
  2. Remove bolt securing flywheel cover to gearbox and remove cover.
