Steptronic (EM-CVT) gearbox (page 2 of 2)

Make

MG

Model

MGF Factory Workshop Manual

Year

1995–2000

Section

Repairs

Automatic gearbox - EM-CVTSteptronic (EM-CVT) gearbox · page 2 of 2

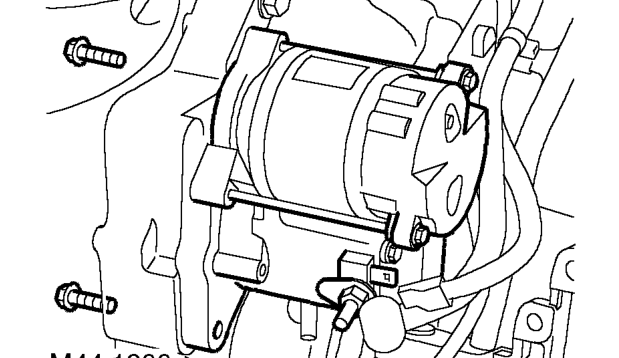

6. Remove 2 bolts securing starter motor to gearbox and remove starter motor.

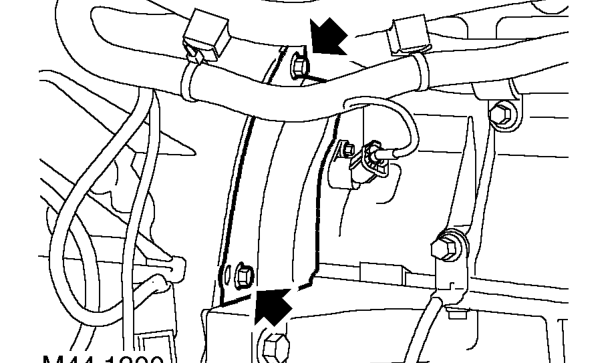

7. Remove 2 bolts securing rear flywheel cover to gearbox and remove cover.

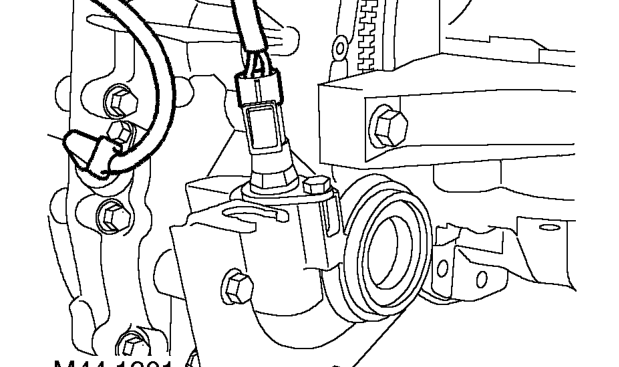

8. Disconnect multiplugs from speed sensor and speedometer transducer.

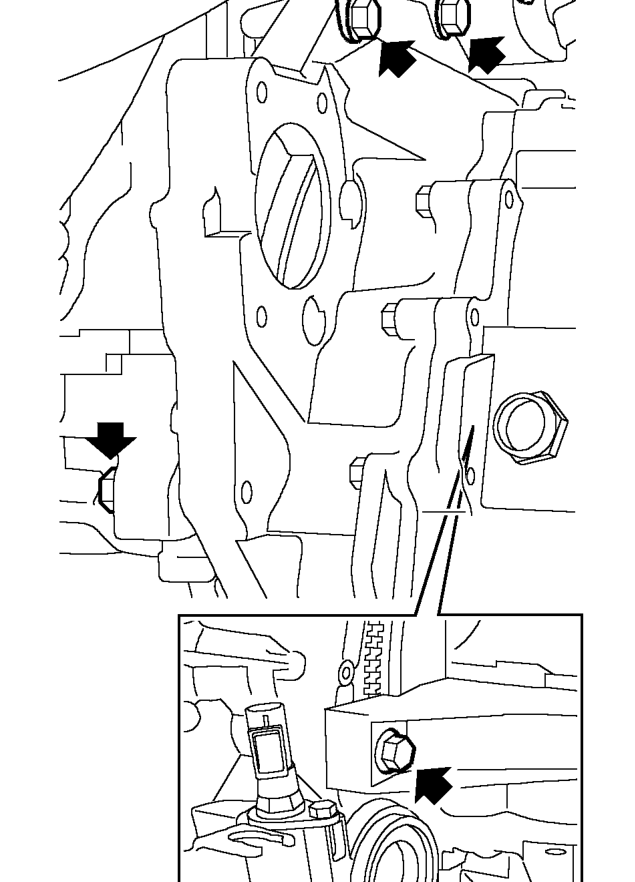

9. Remove 4 bolts securing gearbox to engine, and collect mounting plate.
10. With assistance remove gearbox from engine.
