Gasket - fluid pan

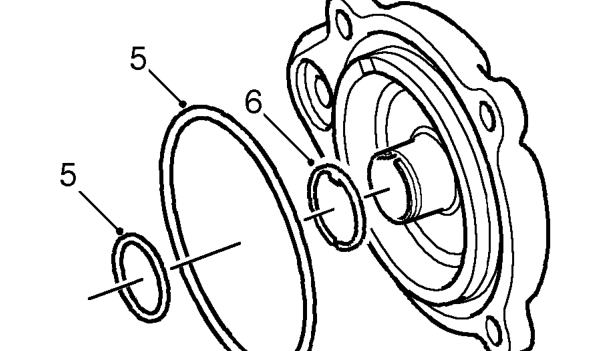

5. Remove and discard 2 ’O’ rings from cover.
6. Remove and discard split ring.

Refit

1. Clean secondary cover and mating faces of cover and gearbox.
2. Lubricate new ’O’ rings with clean gearbox fluid and fit to secondary cover.
3. Fit new split ring to secondary cover.
4. Fit and align secondary cover to gearbox.
5. Fit bolts securing secondary cover to gearbox and tighten to 10 Nm.
6. Align LH buttress to subframe, fit bolts and tighten to 45 Nm.
7. Fit LH engine mounting. See ENGINE, Repairs.

GASKET - FLUID PAN

Service repair no - 44.24.05

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Drain gearbox fluid. See Adjustments.

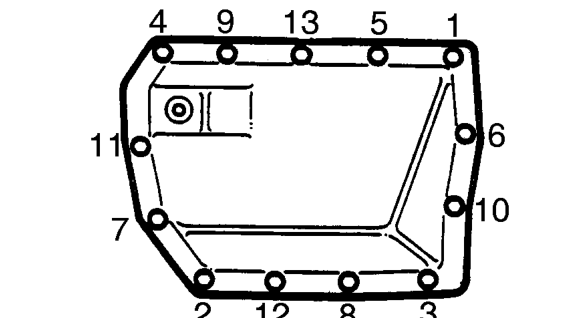

3. Working in the sequence illustrated, loosen then remove 13 bolts securing fluid pan to gearbox.
4. Release fluid pan from gearbox and filter, remove fluid pan.
5. Remove and discard gasket.
