MG TF Factory Workshop Manual (2002-2005)05 · Engine (K Series)
05 · Engine

Gasket - cylinder head - VVC models (page 2 of 4)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Engine (K Series)Gasket - cylinder head - VVC models · page 2 of 4
  1. Remove spacer from heat shield retaining stud.
Remove spacer from heat shield retaining stud.

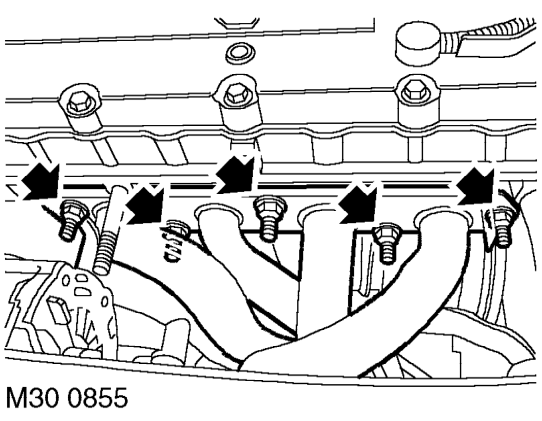

  1. Remove 5 nuts securing exhaust manifold to cylinder head, release exhaust manifold from studs and position aside. Remove and discard exhaust manifold gasket.
Remove 5 nuts securing exhaust manifold to cylinder head, release exhaust manifold from st

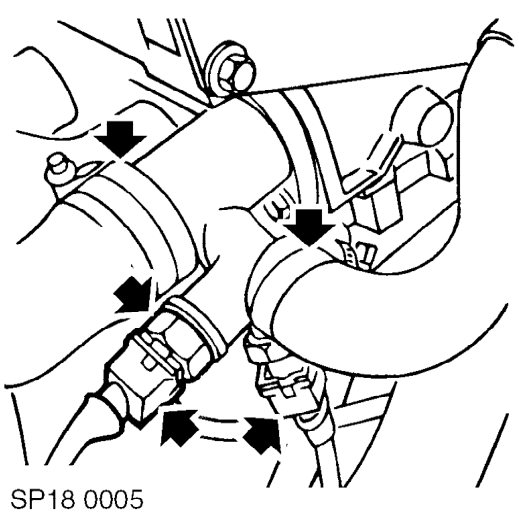

  1. Disconnect multiplugs from coolant temperature sensors.
  2. Loosen 2 clips and disconnect coolant hoses from elbow on cylinder head.
Loosen 2 clips and disconnect coolant hoses from elbow on cylinder head.

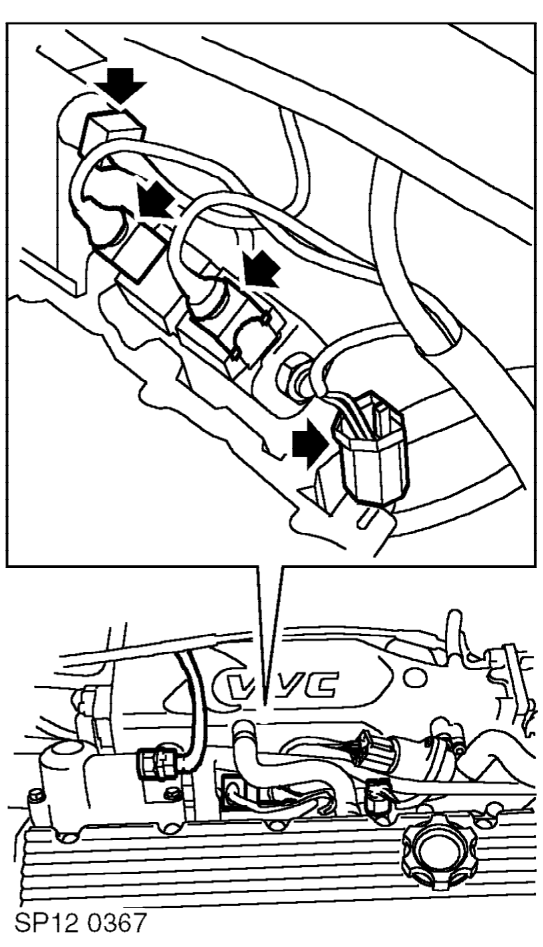

  1. Release HO2S multiplug from bracket at rear of cylinder head.
Release HO2S multiplug from bracket at rear of cylinder head.

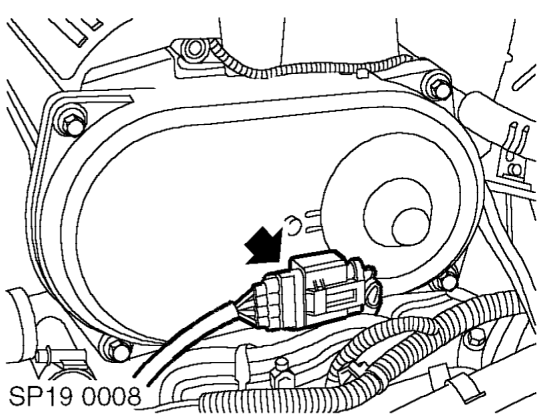

  1. Disconnect multiplug from CMP sensor.
  2. Disconnect oil temperature sensor multiplug.
  3. Disconnect 2 multiplugs from hydraulic control solenoids.
  4. Temporarily fit camshaft timing gears, fit and lightly tighten bolts.
