MG TF Factory Workshop Manual (2002-2005)05 · Engine (K Series)
05 · Engine

Gasket - cylinder head - VVC models (page 3 of 4)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Engine (K Series)Gasket - cylinder head - VVC models · page 3 of 4
Diagram
  1. Progressively loosen cylinder head to oil rail bolts numbers 1 to 6 in sequence shown.
Progressively loosen cylinder head to oil rail bolts numbers 1 to 6 in sequence shown.

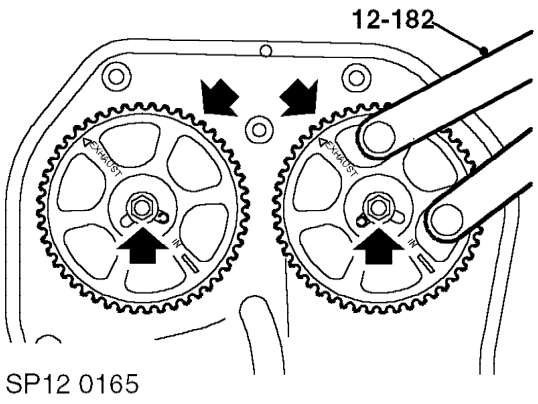

  1. Using tool 12-182, rotate camshafts to gain access to cylinder head bolts beneath camshaft reluctor rings.

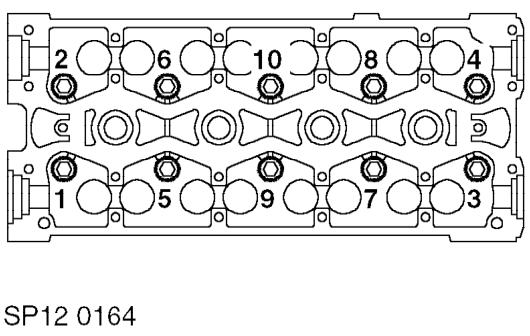

  2. Working in the sequence shown, progressively loosen cylinder head bolt numbers 7 to 10.
  3. Remove camshaft gears.
  4. Remove cylinder head bolts and store in fitted order.
  5. With assistance, remove cylinder head assembly from cylinder block and support on wooden blocks.
With assistance, remove cylinder head assembly from cylinder block and support on wooden b
  1. Remove and discard cylinder head gasket from cylinder block.

CAUTION: Do not rotate crankshaft with cylinder head removed.

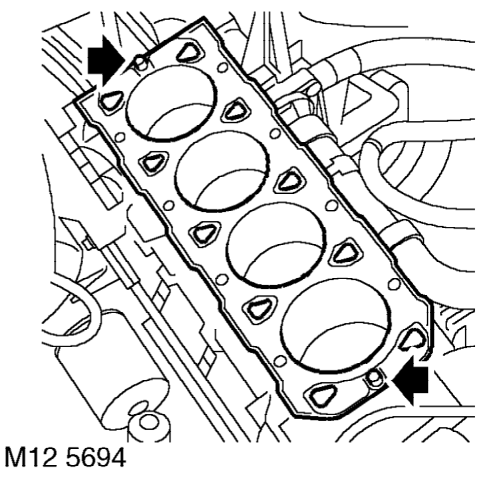

  1. Remove cylinder head location dowels.
Remove cylinder head location dowels.

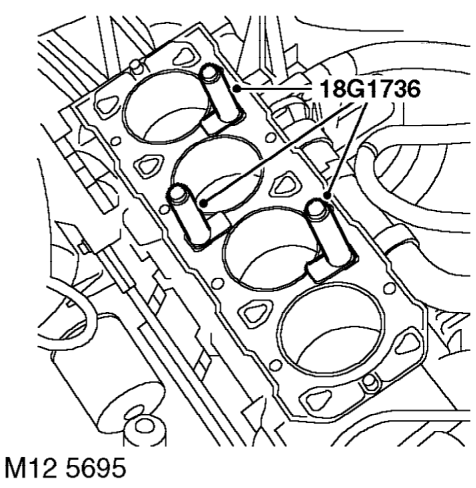

  1. Fit cylinder liner clamps 18G 1736 to cylinder block and secure with cylinder head bolts.

CAUTION: Ensure that cylinder head bolts used are those originally fitted in that location.
