Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Camshaft front oil seal - 97.5 my on

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Camshaft front oil seal - 97.5 my on
Engine - D SeriesCamshaft front oil seal - 97.5 my on · page 1 of 2

Refit

  1. Clean oil pump and block mating faces.

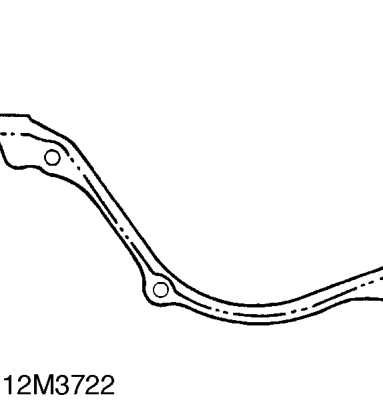

Clean oil pump and block mating faces.
  1. Apply sealant to pump as illustrated.
  2. Fit NEW ’O’ ring.
  3. Lubricate oil seal lip with clean engine oil.
  4. Align pump rotor to drive on crankshaft and fit pump.
  5. Align and secure pump to dowels.
  6. Fit bolts and tighten to 11 Nm.
  7. Clean oil pick-up and strainer. Clean gasket mating faces.
  8. Fit gasket, position pick up and stainer fit nuts and bolts and tighten to 11 Nm.
  9. Fit sump. See this section.
  10. Fit belt guide, concave face towards engine. Fit crankshaft timing belt pulley.
  11. Fit camshaft timing belt. See this section.

CAMSHAFT FRONT OIL SEAL - 97.5 MY ON

Service repair no - 12.13.05

Remove

  1. Remove timing belt upper cover. See this section.
  2. Release camshaft timing belt tension. See Adjustments.

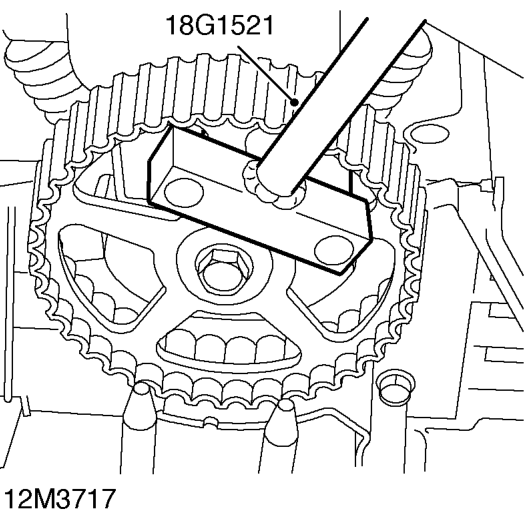

Camshaft front oil seal - 97.5 my on – Release camshaft timing belt tension. See Adjustments.
  1. Release timing belt from pulley.
  2. Hold camshaft pulley using tool 18G 1521.

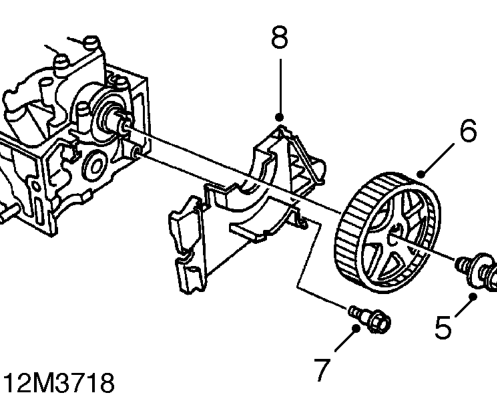

Camshaft front oil seal - 97.5 my on – Hold camshaft pulley using tool 18G 1521.
  1. Remove bolt securing camshaft pulley.
  2. Remove camshaft pulley.
  3. Remove bolt securing timing belt rear cover.
  4. Remove rear cover.
  5. Fit camshaft pulley bolt to camshaft.

CAUTION: Do not tighten bolt and ensure camshaft does not turn.
