Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Crankshaft pulley - up to 97.5 my

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Crankshaft pulley - up to 97.5 my
Engine - D SeriesCrankshaft pulley - up to 97.5 my

CRANKSHAFT PULLEY - UP TO 97.5 MY

Service repair no - 12.21.01

Remove

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Remove alternator drive belt. See ELECTRICAL, Repairs.
  3. Remove timing belt upper cover. See this section.
  4. Remove LH front wheel.
  5. Remove starter motor. See ELECTRICAL, Repairs.
Crankshaft pulley - up to 97.5 my – Remove starter motor. See ELECTRICAL, Repairs.

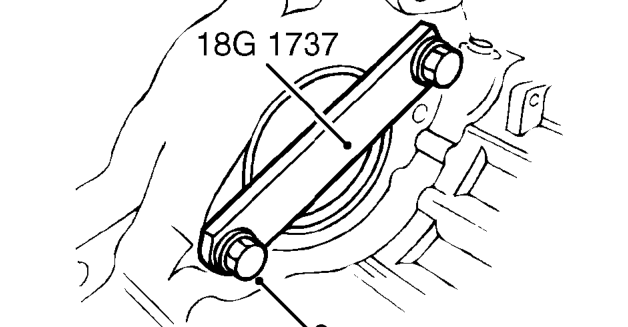

  1. Fit tool 18G 1737 to starter aperture and secure with 2 bolts.
Crankshaft pulley - up to 97.5 my – Fit tool 18G 1737 to starter aperture and secure with 2 bolts.

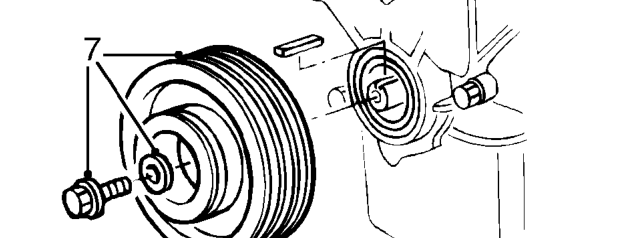

  1. Remove crankshaft pulley bolt and remove pulley.

Refit

  1. Clean crankshaft pulley and end of crankshaft.
  2. Ensure key is located and fit crankshaft pulley.
  3. Apply clean engine oil to threads of pulley bolt. Fit bolt and tighten to 165 Nm.
  4. Remove tool 18G 1737.
  5. Fit starter motor. See ELECTRICAL, Repairs.
  6. Fit timing belt upper cover. See this section.
  7. Fit alternator drive belt. See ELECTRICAL, Repairs.
  8. Fit underbelly panel. See BODY, Exterior fittings.
  9. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  10. Remove stand(s) and lower vehicle.
