ENGINE RH FRONT MOUNTING

Service repair no - 12.45.03

Remove

  1. Remove underbelly panel. See BODY, Exterior fittings.

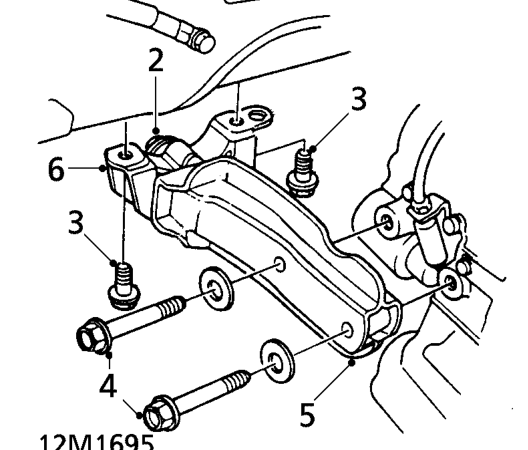

Engine rh front mounting – Remove underbelly panel. See BODY, Exterior fittings.
  1. Remove nut securing engine mounting to bracket.
  2. Remove 2 bolts securing engine mounting to body.
  3. Remove 2 bolts securing engine mounting bracket to gearbox.
  4. Remove mounting and bracket.
  5. Remove mounting from bracket.

Refit

  1. Fit mounting to bracket and fit mounting assembly to vehicle.
  2. Tighten bolts securing bracket to gearbox to 65 Nm.
  3. Align mounting to body and tighten bolts to 45 Nm.
  4. Fit nut securing mounting to bracket and tighten to 60 Nm.
  5. Fit underbelly panel. See BODY, Exterior fittings.

ENGINE REAR MOUNTING

Service repair no - 12.45.08

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

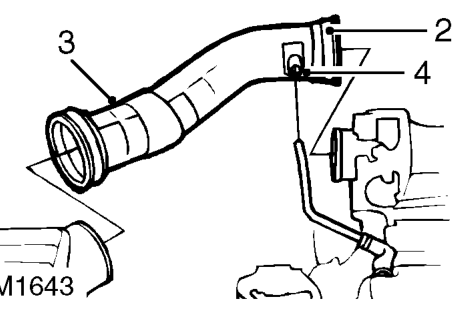

Engine rear mounting – Raise front of vehicle.
  1. Loosen air intake hose clip.
  2. Disconnect hose from air cleaner and throttle housing.
  3. Release clip and disconnect breather pipe from air intake hose. Remove air intake hose.

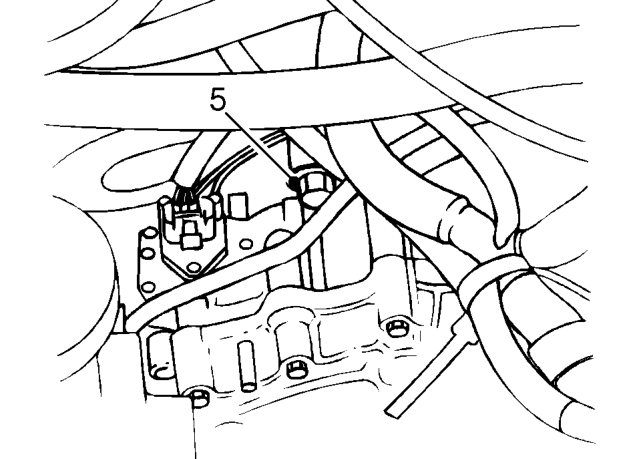

Engine rear mounting – Release clip and disconnect breather pipe from air intake hose. Remove air intake hose.
  1. Remove upper bolt securing rear mounting bracket.
