ENGINE RH MOUNTING

Service repair no - 12.45.31

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
Engine rh mounting – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.

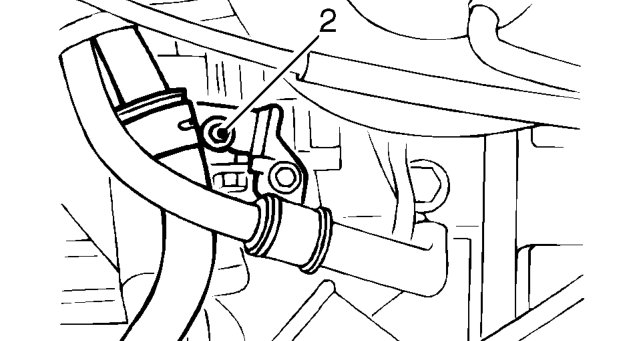

  1. Remove bolt securing engine harness clip to starter motor and move harness aside.
  2. Support gearbox on a jack.

CAUTION: Use block of wood or hard rubber pad to protect gearbox.

Engine rh mounting – Support gearbox on a jack.

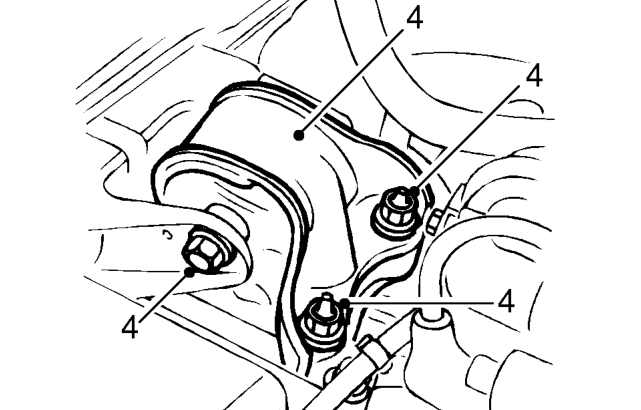

  1. Remove through bolt and 2 nuts. Remove engine mounting.

Refit

  1. Fit engine mounting to studs and tighten nuts to 65 Nm.
  2. Align mounting to bracket on body and tighten through bolt to 75 Nm.
  3. Remove jack.
  4. Align harness to bracket and secure with bolt.
  5. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
