Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Up to 97.5MY illustrated

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Up to 97.5MY illustrated
Engine - D SeriesUp to 97.5MY illustrated · page 1 of 2
Diagram

Up to 97.5MY illustrated

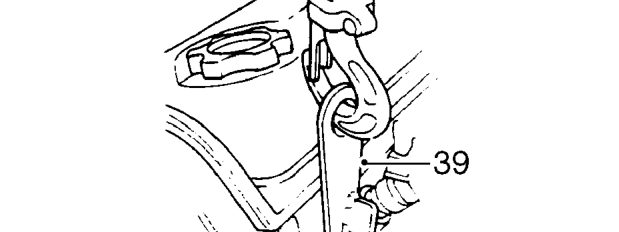

  1. Fit lifting bracket to alternator mounting bracket using a 10mm bolt.
Up to 97.5my illustrated – Fit lifting bracket to alternator mounting bracket using a 10mm bolt.

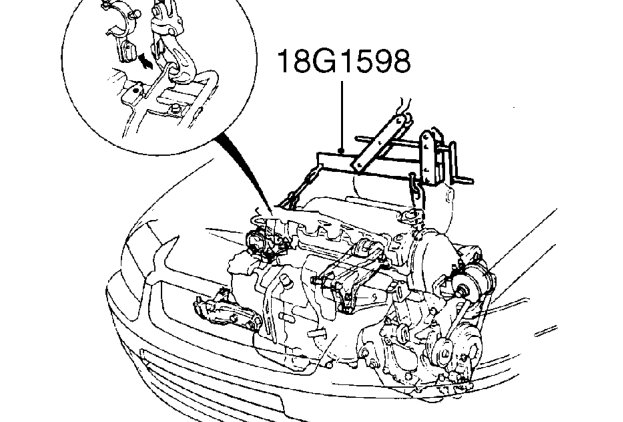

  1. Use a hoist and connect adjustable lifting bracket 18G 1598 .
Up to 97.5my illustrated – Use a hoist and connect adjustable lifting bracket 18G 1598 .

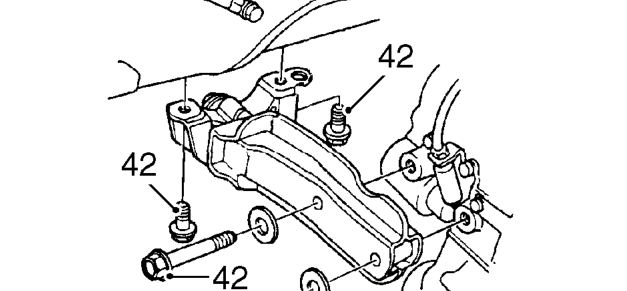

  1. Remove 4 bolts securing LH front mounting to body and engine. Remove mounting.
Up to 97.5my illustrated – Remove 4 bolts securing LH front mounting to body and engine. Remove mounting.

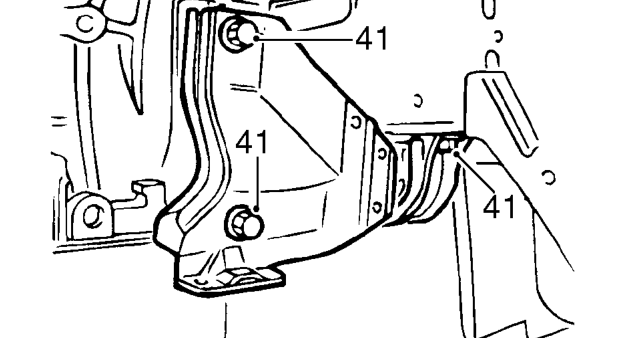

  1. Remove 3 bolts securing RH front mounting to body and gearbox. Remove through bolt and mounting.
Up to 97.5my illustrated – Remove 3 bolts securing RH front mounting to body and gearbox. Remove through bolt and mou

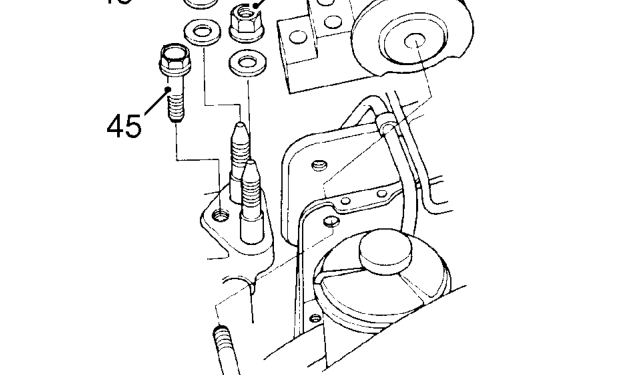

  1. Remove 4 bolts securing rear mounting bracket to engine and mounting rubber.
  2. Remove screw securing engine harness clip to rear mounting bracket.
Up to 97.5my illustrated – Remove screw securing engine harness clip to rear mounting bracket.

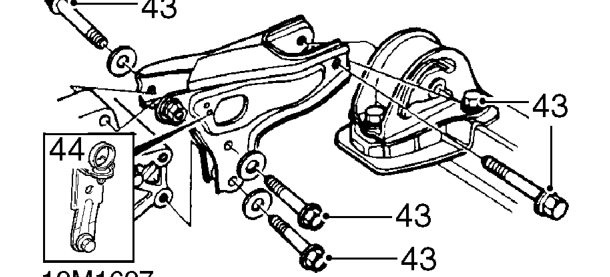

  1. Remove 2 nuts and bolt securing LH centre mounting to engine and body. Remove through bolt and mounting.
