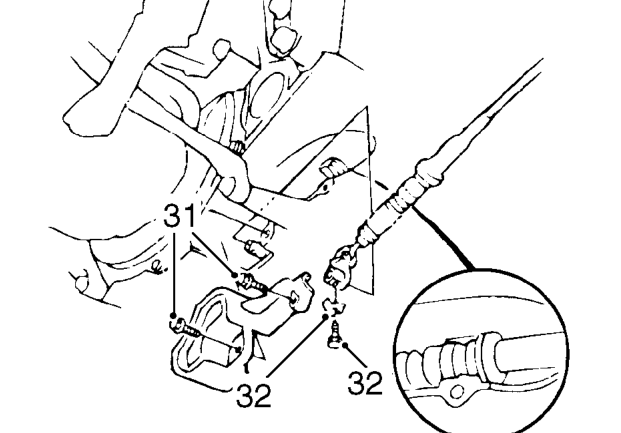

31. Remove 2 bolts securing gear selector cable cover and remove cover.
32. Release lock washer and remove bolt securing selector cable to gearbox.

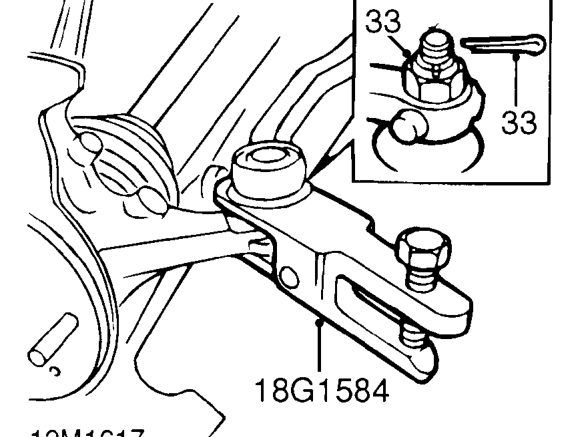

33. Remove split pins from both steering arm nuts and remove nuts.
34. Break taper joints using tool 18G 1584 .

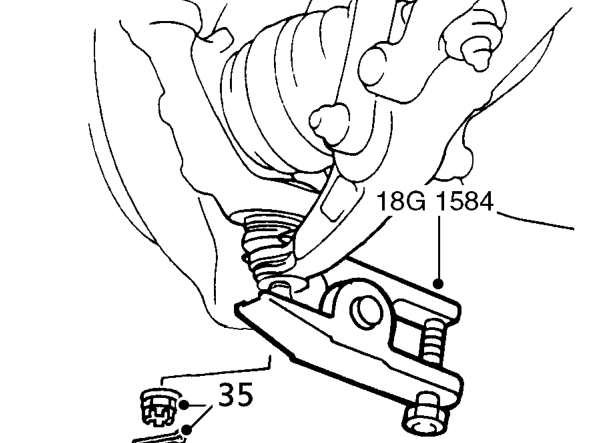

35. Remove split pins from both lower ball joint nuts and remove nuts.
36. Break taper joints using tool 18G 1584 .

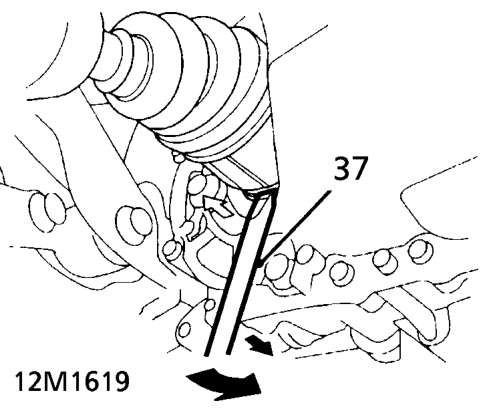

37. Release drive shafts from gearbox.

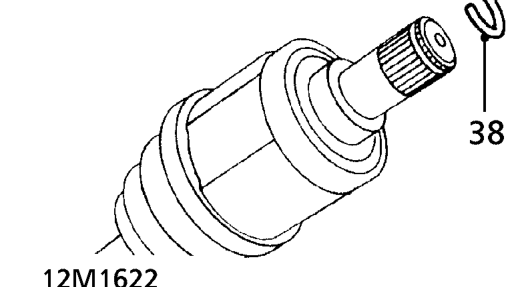

38. Remove and discard circlips from drive shafts.
