Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Up to 97.5 MY illustrated (page 2 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - D SeriesUp to 97.5 MY illustrated · page 2 of 3

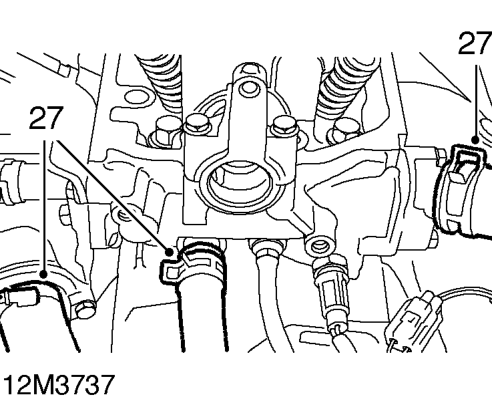

Diagram
  1. Disconnect top, bottom and heater hoses from engine.
Disconnect top, bottom and heater hoses from engine.

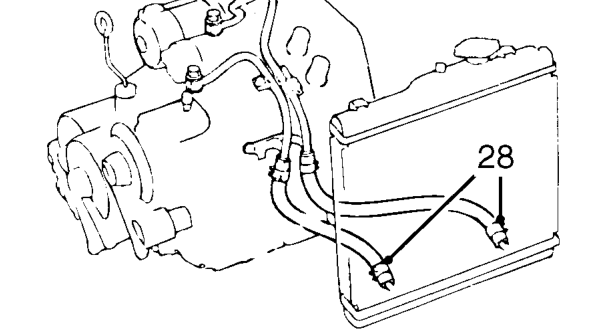

  1. Release clips and disconnect oil cooler hoses from coolant radiator.

CAUTION: Plug the connections.

  1. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

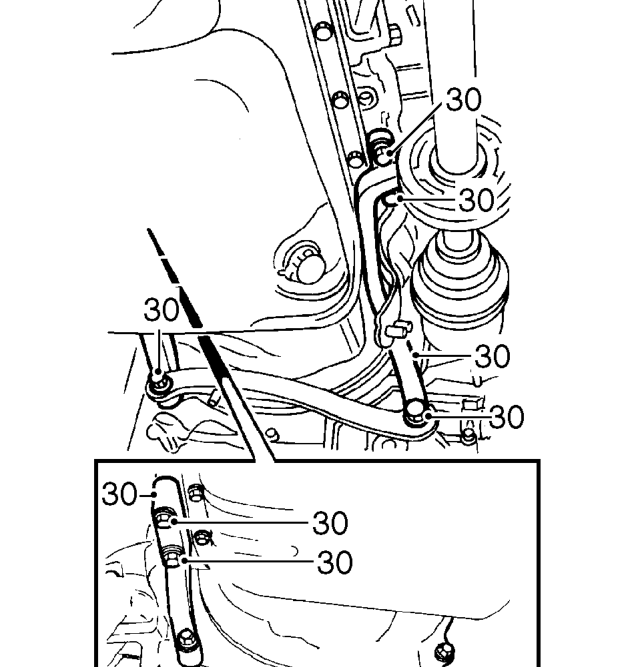

  1. Remove 6 bolts securing exhaust support and anti- beaming bracket to engine. Remove both brackets.
