CAMSHAFT TIMING BELT UPPER COVER - 97 MY ON

Service repair no - 12.65.41

Remove

  1. Disconnect battery earth lead.
  2. Remove camshaft cover. See this section.
Camshaft timing belt upper cover - 97 my on – Remove camshaft cover. See this section.

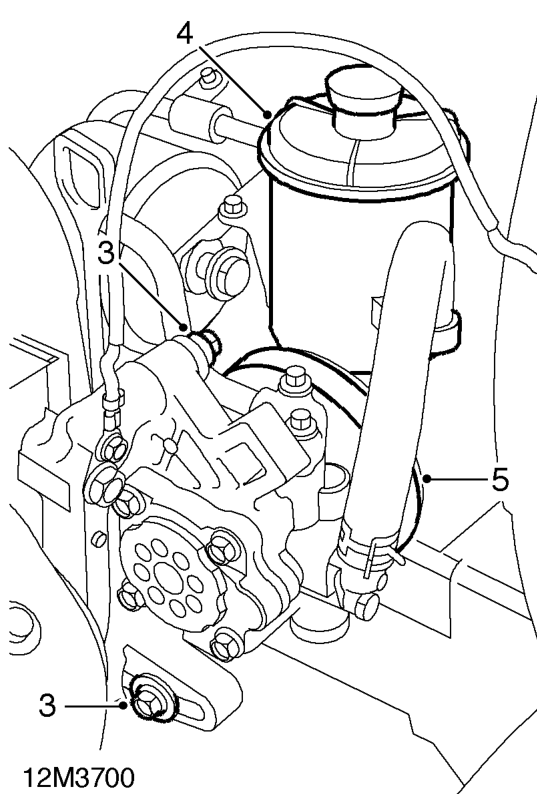

  1. Remove 2 bolts securing PAS pump to bracket.
  2. Release power steering reservoir from bracket, release drive belt from pulley and move pump and reservoir aside.

CAUTION: Keep pump upright to avoid fluid loss.

  1. Remove PAS pump drive belt.
  2. Position jack under sump to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

Camshaft timing belt upper cover - 97 my on – Position jack under sump to support engine.

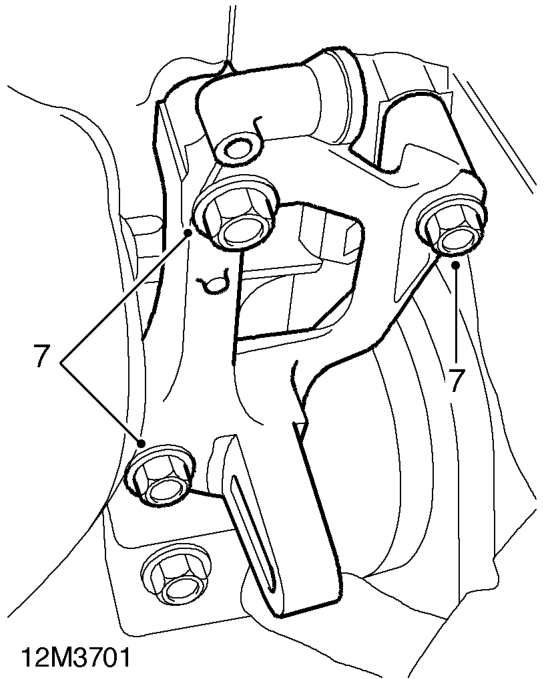

  1. Remove 3 bolts securing PAS pump bracket and move bracket aside.
Camshaft timing belt upper cover - 97 my on – Remove 3 bolts securing PAS pump bracket and move bracket aside.

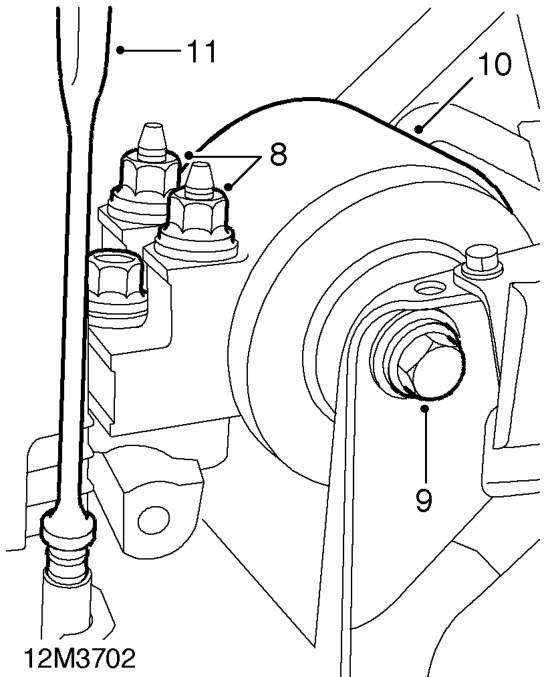

  1. Remove bolt and 2 nuts securing engine lH mounting bracket to engine.
  2. Remove bolt securing engine LH mounting to body.
  3. Remove engine LH mounting.
  4. Remove engine oil dipstick.
