CRANKSHAFT PULLEY - 97.5 MY ON

Service repair no - 12.21.01

Remove

  1. Remove underbelly panel. See BODY, Repairs.
  2. Remove alternator drive belt. See ELECTRICAL, Repairs.
  3. Remove LH front wheel.
Crankshaft pulley - 97.5 my on – Remove LH front wheel.

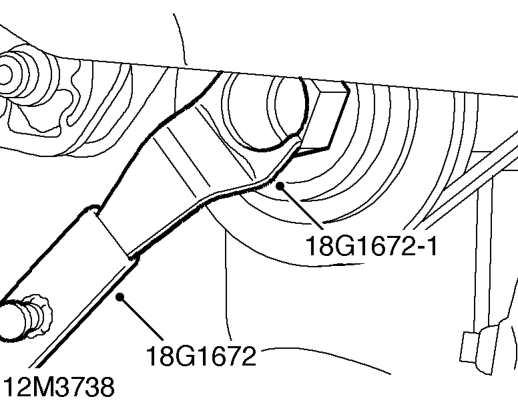

  1. Fit tool 18G 1672 with 18G 1672-1 to crankshaft pulley.
Crankshaft pulley - 97.5 my on – Fit tool 18G 1672 with 18G 1672-1 to crankshaft pulley.

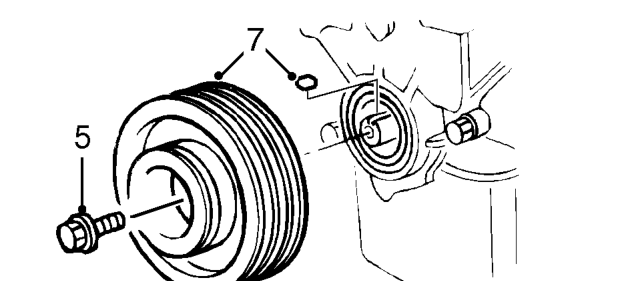

  1. Remove crankshaft pulley bolt.
  2. Remove tool 18G 1672.
  3. Remove pulley and collect key.

Refit

  1. Clean crankshaft pulley and end of crankshaft.
  2. Fit key to crankshaft.
  3. Fit crankshaft pulley.
  4. Fit tool 18G 1672 to crankshaft pulley.
  5. Apply clean engine oil to threads and under head of pulley bolt, fit bolt and tighten to 20 Nm. Tighten bolt a further 90°.
  6. Remove tool 18G 1672.
  7. Fit alternator drive belt. See ELECTRICAL, Repairs.
  8. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  9. Fit underbelly panel. See BODY, Repairs.
