Drive plate

30. Secure power steering hoses to clips.
31. Connect throttle cable to linkage and abutment bracket. Secure cable to clips.
32. Adjust throttle cable free-play. See ENGINE MANAGEMENT SYSTEM - PGMFi, Adjustments.
33. Fit distributor. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
34. Connect fuel outlet pipe fitting new sealing washers. Tighten banjo bolt to 33 Nm.
35. Connect earth leads to gearbox, tighten bolt to 9 Nm.
36. Connect earth lead to bonnet platform and tighten bolt.
37. Fit leads to fuse box and tighten screws. Fit fuse box cover.
38. Connect engine harness multiplugs.
39. Fit engine harness bracket bolt.
40. Refit underbelly panel. See BODY, Exterior fittings.
41. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
42. Remove stand(s) and lower vehicle.
43. Refit air cleaner. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
44. Refill cooling system. See MAINTENANCEMaintenance.
45. Fill engine with correct quantity and grade of oil. See MAINTENANCEMaintenance.
46. Fill gearbox with correct quantity and grade of oil. See MAINTENANCEMaintenance.
47. Connect both battery leads.
48. Check ignition timing. See ENGINE MANAGEMENT SYSTEM - PGMFi, Adjustments.

DRIVE PLATE

Service repair no - 12.53.13

Remove

1. Remove automatic gearbox & converter. See AUTOMATIC GEARBOX, Repairs.

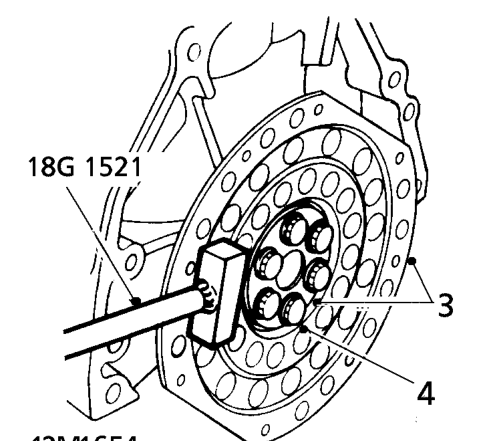

2. Hold drive plate against rotation, using tool 18G 1521 .
3. Slacken in sequence and remove 6 bolts securing drive plate.
4. Remove washer and drive plate.

Refit

1. Clean drive plate and crankshaft mating face.
2. Position drive plate and washer on crankshaft flange.
3. Fit bolts, hold drive plate against rotation using 18G 1521 , and in a diagonal sequence tighten to 74 Nm.
4. Fit automatic gearbox & converter. See AUTOMATIC GEARBOX, Repairs.
