Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Up to 97.5 MY illustrated

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Up to 97.5 MY illustrated
Engine - D SeriesUp to 97.5 MY illustrated · page 1 of 3
Diagram

Up to 97.5 MY illustrated

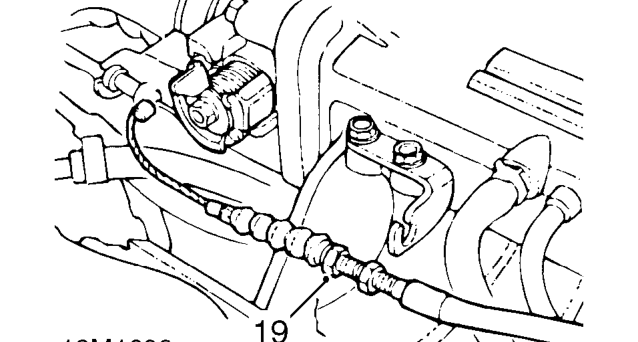

  1. Loosen throttle cable lock nut, release cable from bracket and throttle linkage.
  2. Release throttle cable from 4 retaining clips.
Up to 97.5 my illustrated – Release throttle cable from 4 retaining clips.

Up to 97.5 MY illustrated

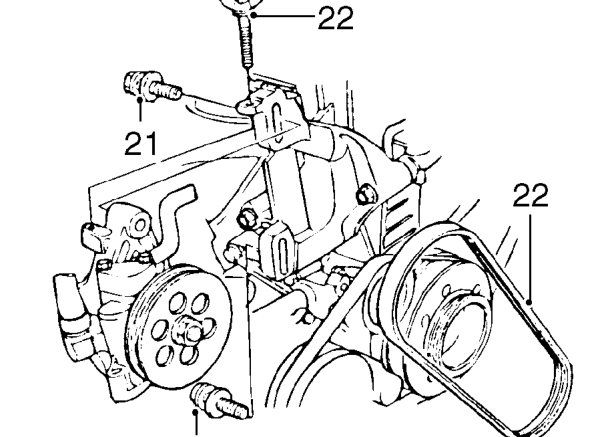

  1. Remove 2 bolts securing power steering pump to engine bracket.
  2. Up to 97.5 MY: Unscrew adjuster from pump and remove drive belt. From 97.5 MY: Remove drive belt.
Up to 97.5 my illustrated – Up to 97.5 MY: Unscrew adjuster from pump and remove drive belt. From 97.5 MY: Remove driv

Up to 97.5 MY illustrated

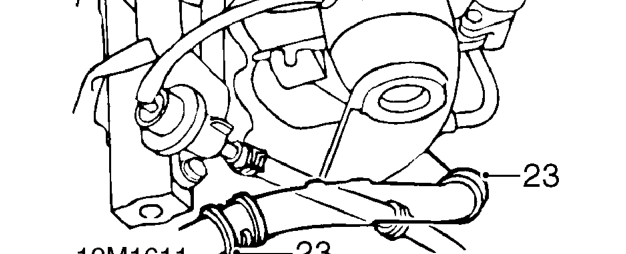

  1. Release power steering hose from clips. move pump aside.

CAUTION: Keep pump upright to avoid oil spillage.

Up to 97.5 my illustrated – Release power steering hose from clips. move pump aside.

Up to 97.5 MY illustrated

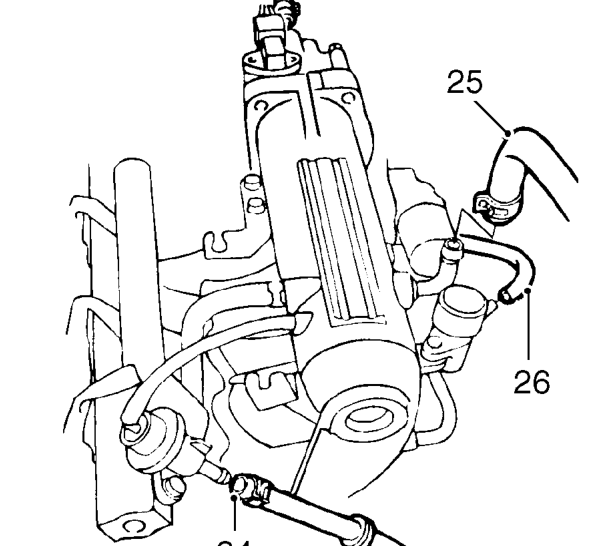

  1. Disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Disconnect 2 vacuum hoses from inlet manifold.
  2. Disconnect brake servo vacuum hose from pipe.
