Engine - D SeriesOil pump

OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.

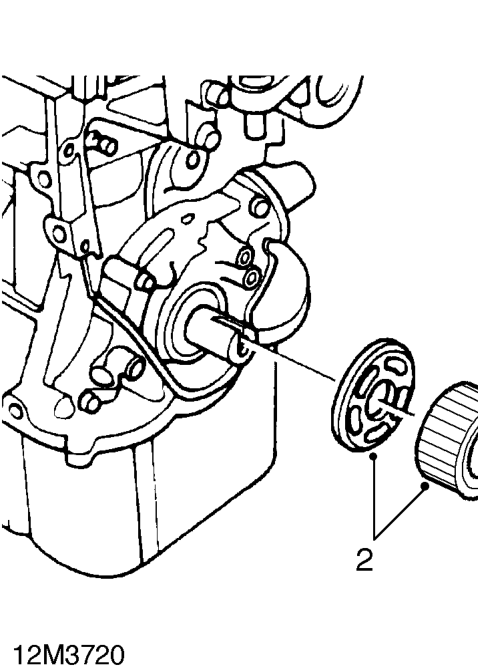

Oil pump – Remove camshaft timing belt. See this section.
  1. Remove crankshaft timing belt pulley and belt guide.
  2. Remove sump. See this section.

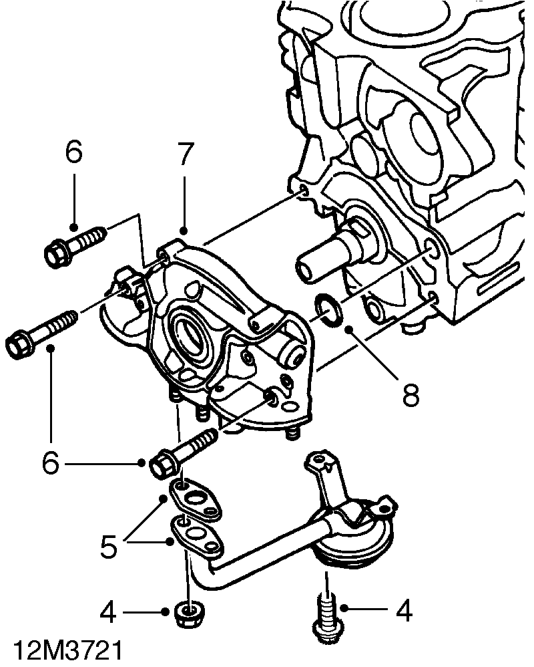

Oil pump – Remove sump. See this section.
  1. Remove 2 nuts and 2 bolts securing oil pick-up and strainer.
  2. Remove pick-up and strainer and gasket.
  3. Remove 5 bolts securing oil pump.
  4. Release and remove pump.
  5. Remove and discard ’O’ ring.
