CYLINDER HEAD GASKET - UP TO 97.5 MY

Service repair no - 12.29.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Drain cooling system. See MAINTENANCEMaintenance.
Cylinder head gasket - up to 97.5 my – Drain cooling system. See MAINTENANCEMaintenance.

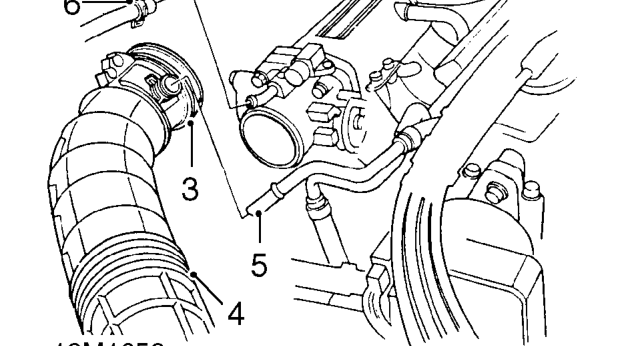

  1. Loosen clip securing air intake hose to throttle housing.
  2. Disconnect hose from air cleaner and throttle housing.
  3. Release clip and disconnect breather pipe from air intake hose. Remove air intake hose.
  4. Release clip and disconnect evaporative emission canister hose from throttle housing.
  5. Remove timing belt upper cover. See this section.
Cylinder head gasket - up to 97.5 my – Remove timing belt upper cover. See this section.

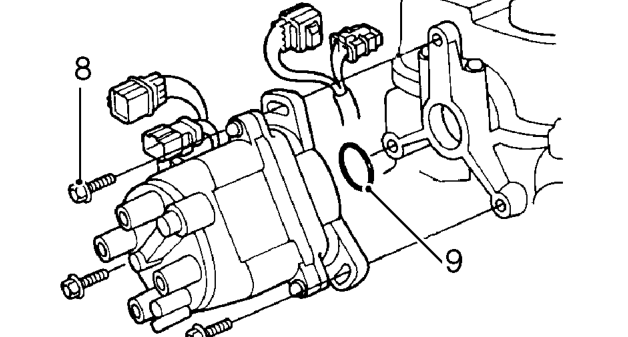

  1. Remove 3 bolts securing distributor, release distributor and move aside.
  2. Remove and discard sealing ring.
Cylinder head gasket - up to 97.5 my – Remove and discard sealing ring.

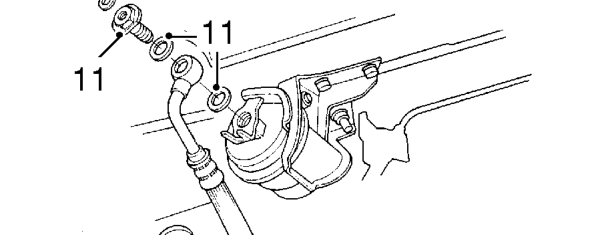

  1. Position absorbent cloth around sealing bolt. Loosen bolt to relieve fuel pressure and retighten bolt to 12 Nm.
  2. Remove banjo union from fuel filter and collect 2 sealing washers.

CAUTION: Plug connections.
