CYLINDER HEAD GASKET - 97.5 MY ON

Service repair no - 12.29.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Drain cooling system. See MAINTENANCEMaintenance.
Cylinder head gasket - 97.5 my on – Drain cooling system. See MAINTENANCEMaintenance.

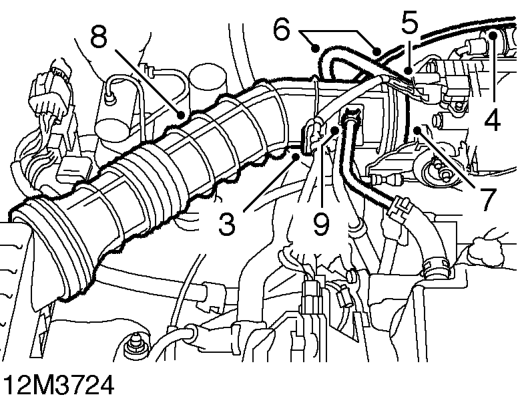

  1. Disconnect intake air temperature (IAT) sensor multiplug.
  2. Disconnect vacuum hose from purge valve.
  3. Release clip and disconnect purge hose from throttle housing.
  4. Release hoses from air intake hose.
  5. Loosen air intake hose clip.
  6. Disconnect hose from air cleaner and throttle housing.
  7. Release engine breather hose clip and remove air intake hose from engine breather pipe.
  8. Remove timing belt upper cover. See this section.
Cylinder head gasket - 97.5 my on – Remove timing belt upper cover. See this section.

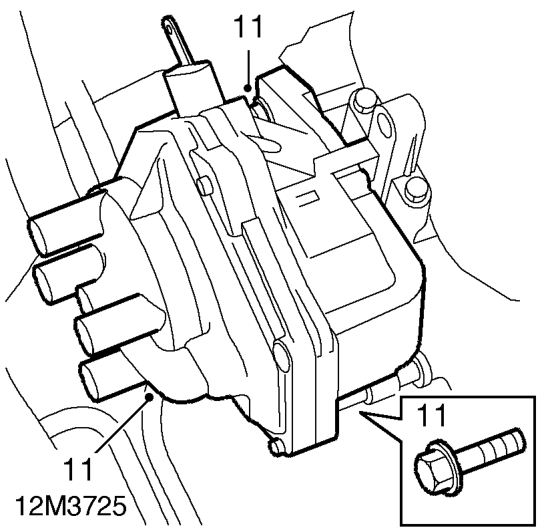

  1. Remove 2 bolts securing distributor, release distributor and move aside.
  2. Remove and discard ’O’ ring.
Cylinder head gasket - 97.5 my on – Remove and discard ’O’ ring.

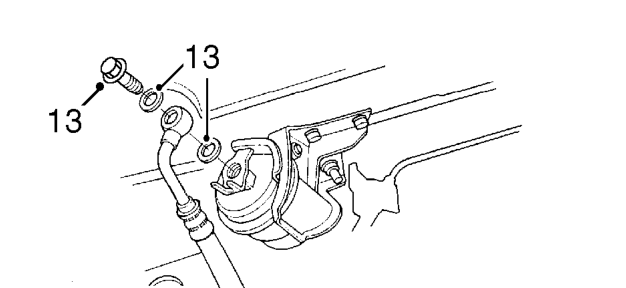

  1. Position absorbant cloth around fuel filter banjo bolt. Loosen bolt to relieve fuel pressure, then remove banjo bolt from filter and collect 2 sealing washers.

CAUTION: Plug the connections.
