06 · Engine

Cylinder head gasket - 97.5 my on (page 2 of 6)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - D SeriesCylinder head gasket - 97.5 my on · page 2 of 6
Diagram

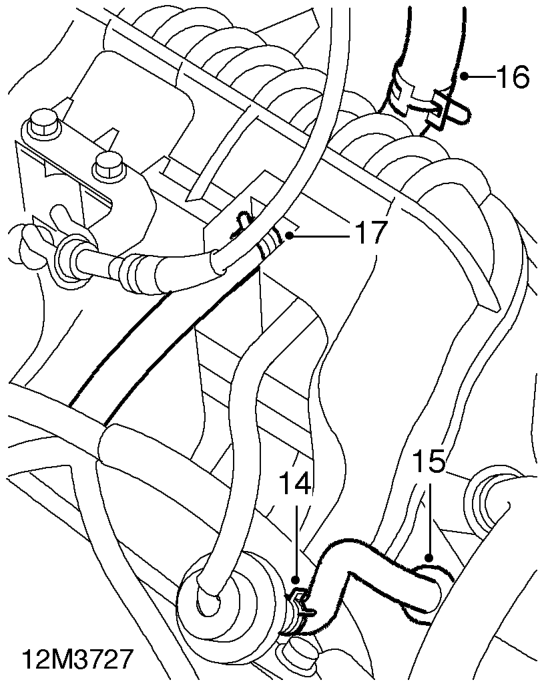

  1. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Release fuel return hose from bracket on inlet manifold.
  2. Release clip and disconnect brake vacuum hose from inlet manifold.

CAUTION: Plug the connections.

  1. Release clip and disconnect positive crankcase ventilation (PCV) valve hose from inlet manifold.
Release clip and disconnect positive crankcase ventilation (PCV) valve hose from inlet man

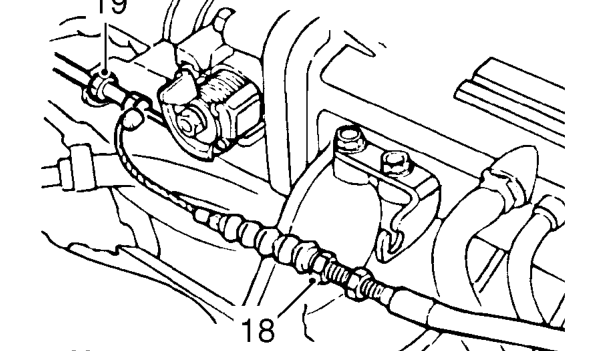

  1. Loosen throttle cable locknut, disconnect outer cable from bracket and inner cable from throttle cam.
  2. Loosen down shift cable locknut, disconnect outer cable from bracket and inner cable from throttle cam.
Loosen down shift cable locknut, disconnect outer cable from bracket and inner cable from

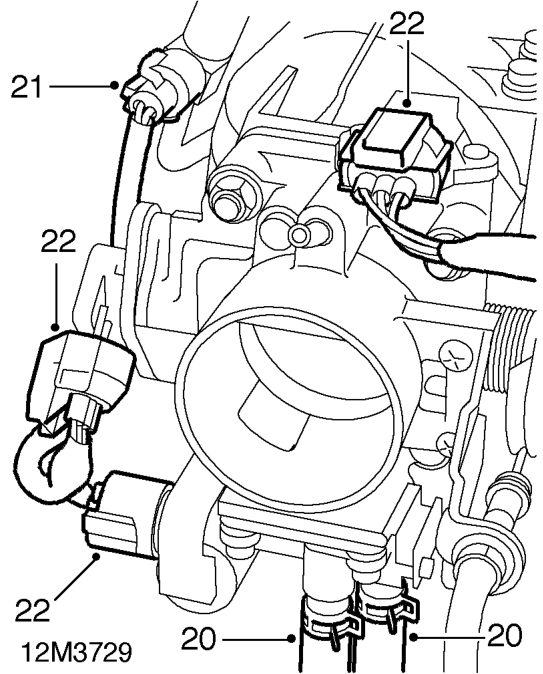

  1. Release clips and disconnect 2 coolant hoses from idle air control (IAC) valve.
  2. Disconnect purge control valve multiplug.
  3. Disconnect multiplugs from idle air control (IAC) valve, manifold absolute pressure sensor (MAP) sensor and throttle position (TP) sensor.
