Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Cylinder head gasket - 97.5 my on (page 4 of 6)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - D SeriesCylinder head gasket - 97.5 my on · page 4 of 6
Diagram

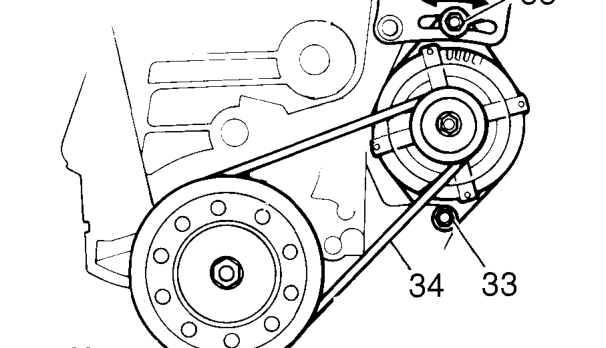

  1. Loosen alternator mounting nut and adjusting bolt.
  2. Release and remove drive belt.
Release and remove drive belt.

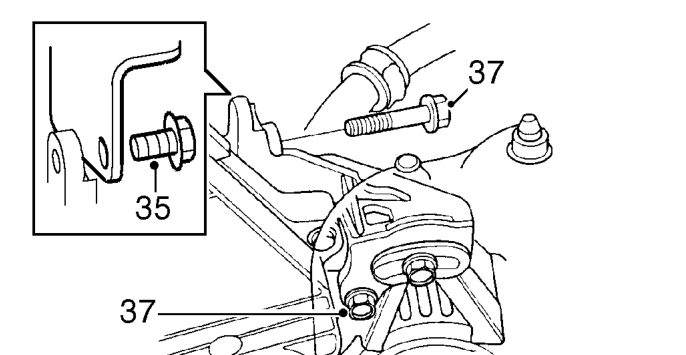

  1. Remove bolt securing fuel rail support bracket.
  2. Remove bracket.
  3. Remove 2 bolts securing alternator bracket to cylinder head and cylinder block.
  4. Turn front wheels onto LH lock.
Turn front wheels onto LH lock.

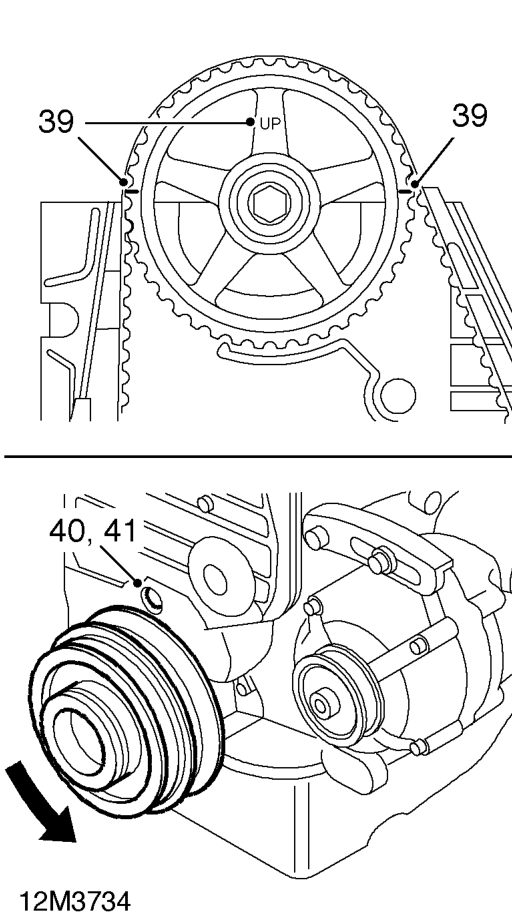

  1. Align TDC mark on crankshaft pulley and pointer on lower cover, with ’UP’ mark and TDC marks on camshaft pulley positioned as illustrated.

NOTE: White mark on crankshaft pulley is TDC.

  1. Remove timing belt tensioner pulley bolt access plug from lower cover.
  2. Loosen tensioner pulley bolt 1/2 turn fully release tensioner and tighten bolt.
  3. Release camshaft drive belt from camshaft gear.
