Engine - D SeriesCylinder head gasket - 97.5 my on · page 3 of 6

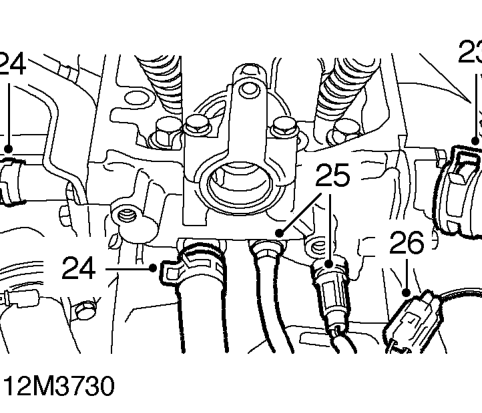

23. Release clip and disconnect top hose from cylinder head.
24. Release clips and disconnect 2 heater hoses from cylinder head.
25. Disconnect connector from coolant temperature gauge sender unit and multiplug from engine coolant temperature (ECT) sensor.
26. Disconnect engine harness from oxygen sensor multiplug and release multiplug from bracket.

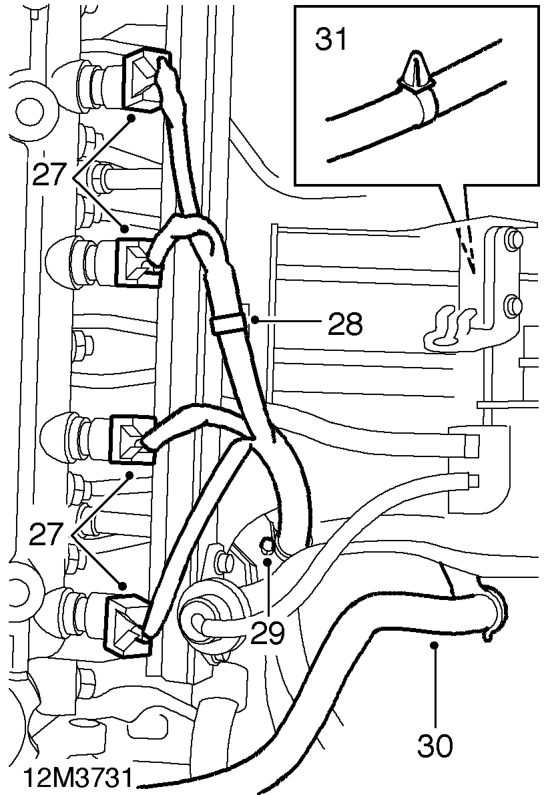

27. Disconnect 4 injector multiplugs.
28. Release injector harness clip from bracket on fuel rail.
29. Remove bolt securing injector harness/PAS pipe bracket to inlet manifold.
30. Release PAS hose from clip on inlet manifold.
31. Remove bolt securing harness clip bracket to underside of inlet manifold.
32. Disconnect exhaust front pipe from manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
