ENGINE LH MOUNTING - 97.5 MY ON

Service repair no - 12.45.30

Remove

  1. Support engine on a jack.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

Engine lh mounting - 97.5 my on – Support engine on a jack.

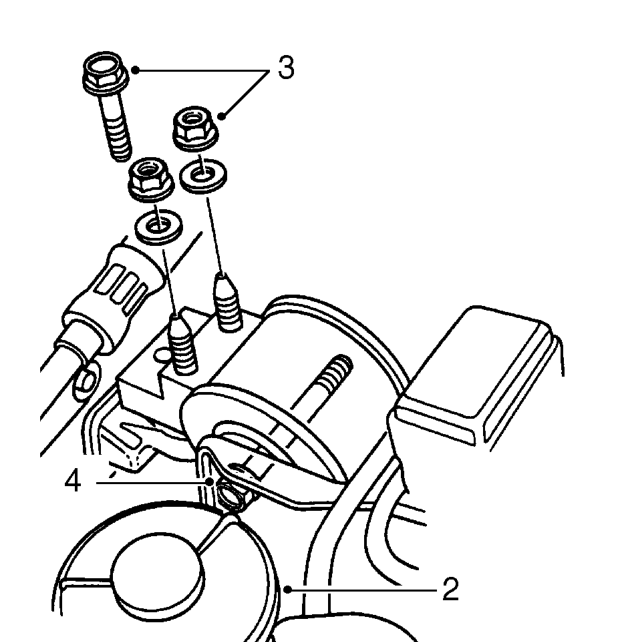

  1. Release PAS reservoir from bracket.
  2. Remove 2 nuts and 1 bolt securing engine mounting to engine.
  3. Remove through bolt securing engine mounting to body.
  4. Remove engine LH mounting.

Refit

  1. Fit engine mounting.
  2. Fit 2 nuts and 1 bolt. Tighten to 52 Nm.
  3. Fit through bolt and tighten to 74 Nm.
  4. Secure PAS reservoir to bracket.
  5. Remove jack.

CAMSHAFT TIMING BELT - 97.5 MY ON

Service repair no - 12.65.18

Remove

  1. Remove timing belt upper cover. See this section.
Camshaft timing belt - 97.5 my on – Remove timing belt upper cover. See this section.

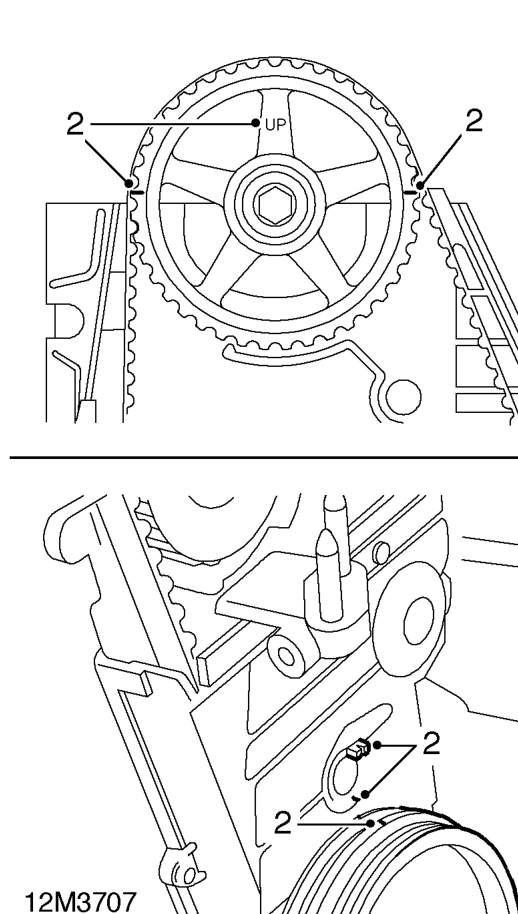

  1. Rotate crankshaft anti-clockwise until crankshaft pulley marks are aligned, with ’UP’ mark and TDC marks on camshaft pulley positioned as illustrated.

NOTE: White mark on crankshaft pulley is TDC.

  1. Remove crankshaft pulley. See this section.
  2. Clean area where dipstick tube enters crankcase.
