Engine LH mounting - 97.5 my on (page 2 of 3)
- Make
- Rover
- Model
- 400 Workshop Manual
- Year
- 1995–2000
- Section
- Repairs
Engine - D SeriesEngine LH mounting - 97.5 my on · page 2 of 3

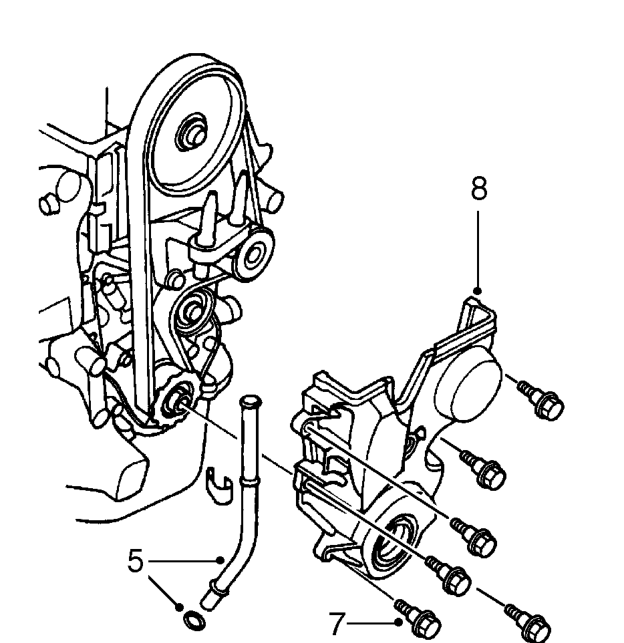

- Remove dipstick tube, remove and discard ’O’ ring.
- Plug crankcase.
- Remove 6 bolts securing lower cover to engine.
- Remove cover.

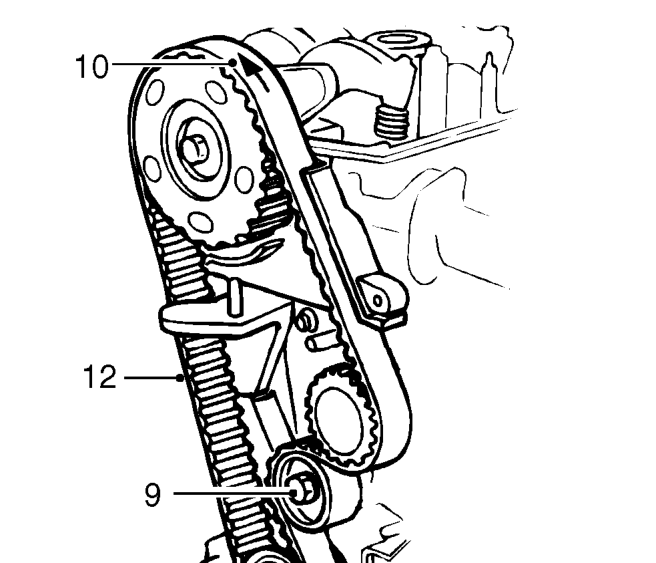

- Loosen timing belt tensioner pulley bolt and move pulley away from belt. Tighten bolt to secure pulley in this position.
- Mark direction of timing belt rotation if belt is to be refitted.
- Remove belt guide plate from crankshaft.
- Slide belt from camshaft pulley and release belt from remaining pulleys.
