Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)06 · Engine - D Series
06 · Engine

Engine and automatic gearbox (page 2 of 2)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - D SeriesEngine and automatic gearbox · page 2 of 2
Diagram

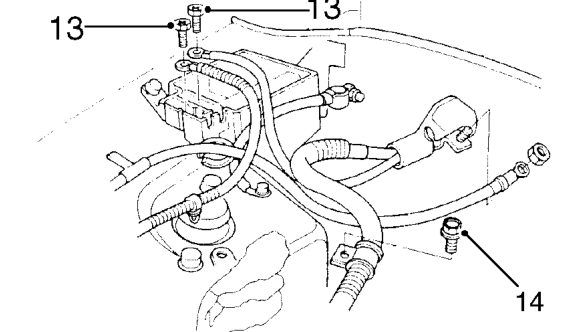

  1. Remove fuse box cover.
  2. Remove 2 screws securing battery and harness lead to fuse box and release leads.
  3. Remove bolt securing battery lead clip.

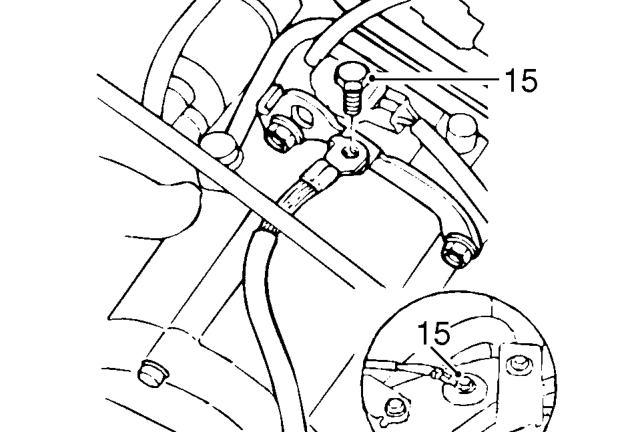

Remove bolt securing battery lead clip.
  1. Remove 2 bolts securing earth leads to bonnet platform and gearbox.
Remove 2 bolts securing earth leads to bonnet platform and gearbox.

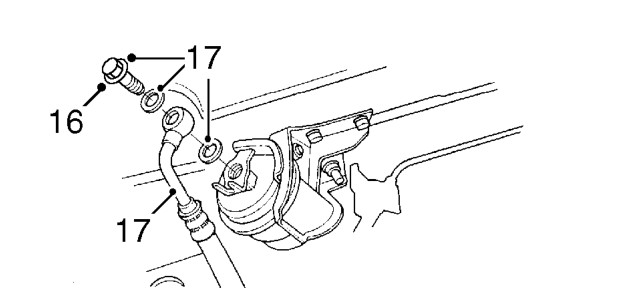

  1. Position absorbent cloth around banjo bolt. Up to 97.5 MY: Use backing spanner, loosen pressure bolt to relieve fuel pressure. Tighten bolt to 15 Nm. 97.5 MY on: Loosen banjo bolt.
  2. Remove banjo bolt, disconnect fuel outlet pipe from filter and collect 2 sealing washers.

CAUTION: Plug the connections

  1. Remove distributor. See ENGINE MANAGEMENT SYSTEM - PGMFi, Repairs.
