MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Service repair no - 18.30.56

Remove

  1. Disconnect battery earth lead.

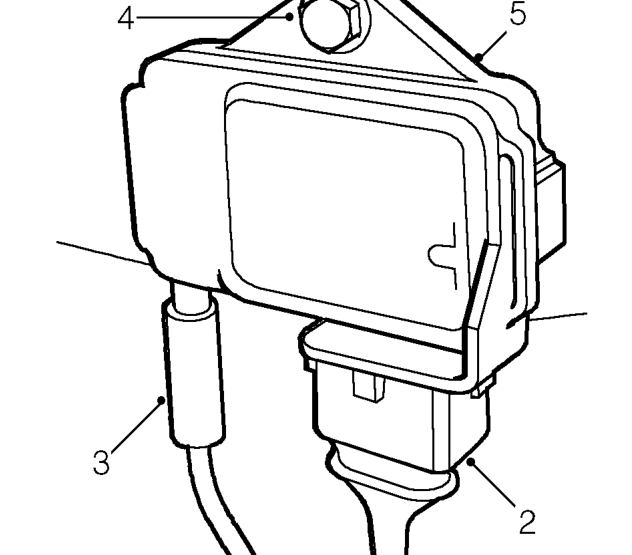

Manifold absolute pressure (map) sensor – Disconnect battery earth lead.
  1. Disconnect multiplug from MAP sensor.
  2. Disconnect pressure sensing pipe from MAP sensor.
  3. Remove bolt securing MAP sensor to mounting bracket.
  4. Remove MAP sensor.

Refit

  1. Align MAP sensor to mounting bracket, fit bolt and tighten to 9 Nm
  2. Connect pressure sensing pipe to MAP sensor.
  3. Connect multiplug to MAP sensor.
  4. Connect battery earth lead.

ENGINE MANAGEMENT RELAY MODULE

Service repair no - 18.30.71

The engine management relay module contains the following relays: Main relay Starter relay Fuel cut off relay

Remove

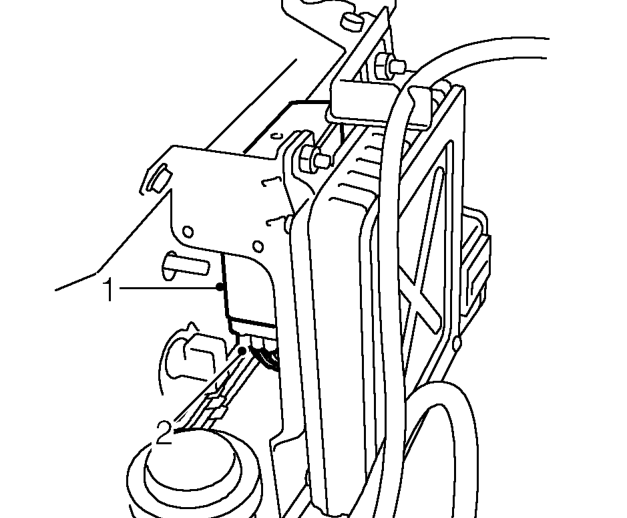

Engine management relay module – The engine management relay module contains the following relays: Main relay Starter relay
  1. Release relay module from mounting bracket.
  2. Disconnect 2 multiplugs from relay module.
  3. Remove relay module.

Refit

  1. Position relay module and connect 2 multiplugs. Ensure multiplugs are correctly engaged.
  2. Secure relay module to mounting bracket.
