THROTTLE POSITION SENSOR

Service repair no - 19.22.49

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.

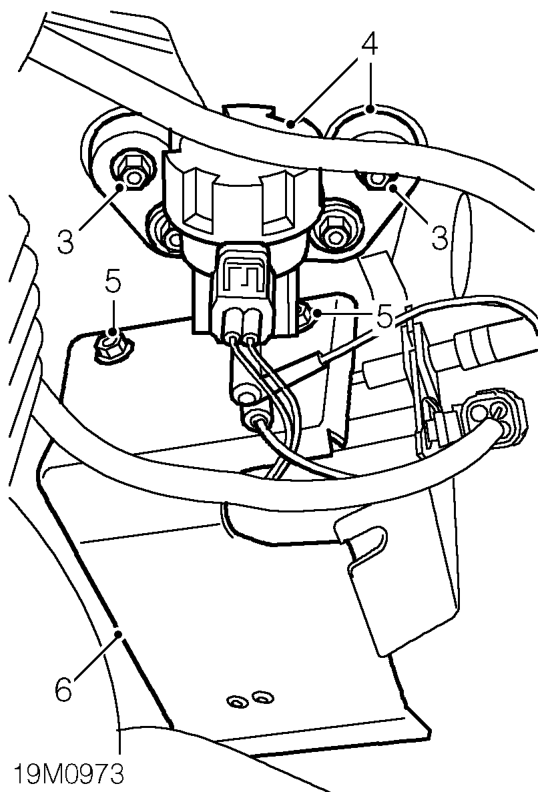

Throttle position sensor – Remove engine acoustic cover. See BODY, Exterior fittings.
  1. Remove 2 nuts securing EGR solenoid valve to mounting bracket.
  2. Remove EGR solenoid valve with rubber mounting.
  3. Remove 2 nuts securing heat shield to mounting bracket.
  4. Remove heat shield, secured with spring clip, from throttle position sensor.

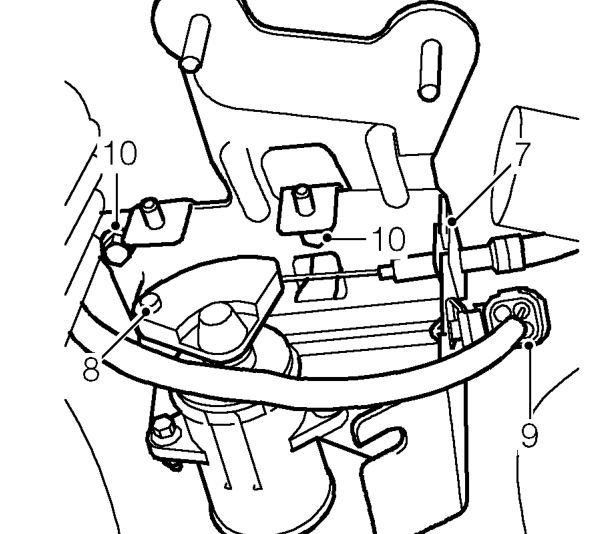

Throttle position sensor – Remove heat shield, secured with spring clip, from throttle position sensor.
  1. Remove throttle cable with abutment nut from mounting bracket.
  2. Disconnect throttle cable from throttle position sensor.
  3. Disconnect throttle position multiplug.
  4. Remove 2 bolts securing mounting bracket to body.
  5. Remove mounting bracket with throttle position sensor.
