Engine management system - EDCGlow plugs · page 1 of 2

GLOW PLUGS

Service repair no - 19.60.31

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.
  3. Air conditioning model: Remove alternator. See ELECTRICAL, Repairs. Intercooler model: Remove plenum chamber. See this section.
  4. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.

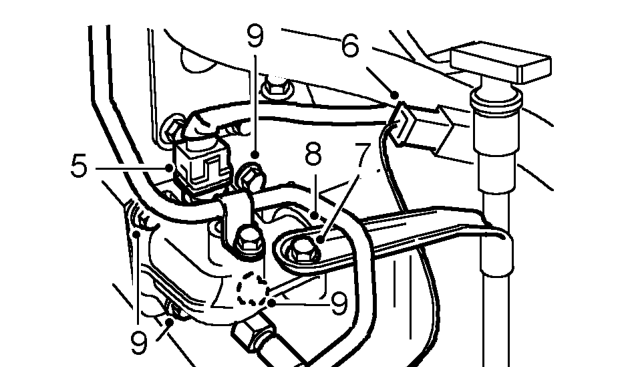

Glow plugs – Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  1. Disconnect multiplug from ECT sensor.
  2. Disconnect temperature gauge sensor Lucar.
  3. Remove bolt securing dipstick tube bracket to coolant outlet elbow.
  4. Slacken clip and disconnect radiator top hose from coolant outlet elbow.
  5. Remove 4 bolts securing coolant outlet elbow to cylinder head.
Glow plugs – Remove 4 bolts securing coolant outlet elbow to cylinder head.
  1. Remove coolant outlet elbow, remove and discard seal.

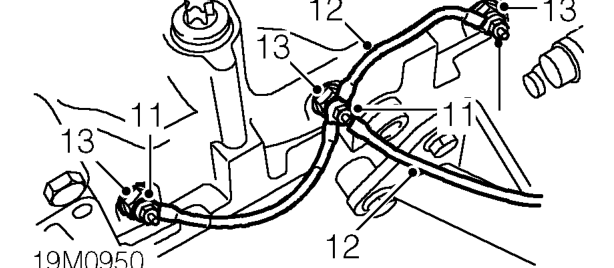

Engines with 3 glow plugs

Engines with 3 glow plugs – Remove coolant outlet elbow, remove and discard seal.
  1. Remove 3 nuts securing feed leads to glow plugs.
  2. Release feed lead from terminal and remove link lead.
  3. Remove 3 glow plugs.

Engines with 4 glow plugs

  1. Remove 4 nuts securing feed leads to glow plugs.
  2. Release feed lead from terminal and remove link lead.
  3. Remove 4 glow plugs.

NOTE: It will be necessary to remove fuel injection pump to gain access to No 4 cylinder glow plug. See this section.
