Fuel shut-off solenoid

Refit

1. Position ECM, connect multiplug and engage metal clip.
2. Fit multiplug retaining screw.
3. Fit ECM to mounting bracket, tighten nuts to 9 Nm.
4. Fit heat shield.
5. Connect battery earth lead.Connect battery earth lead.

NOTE: If a new ECM has been fitted, the ECM will need to be programmed with the code from the anti-theft security unit using TestBook, before the engine can be started.

FUEL SHUT-OFF SOLENOID

Service repair no - 18.30.07

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover. See BODY, Exterior fittings.
3. Clean top of injection pump around solenoid.

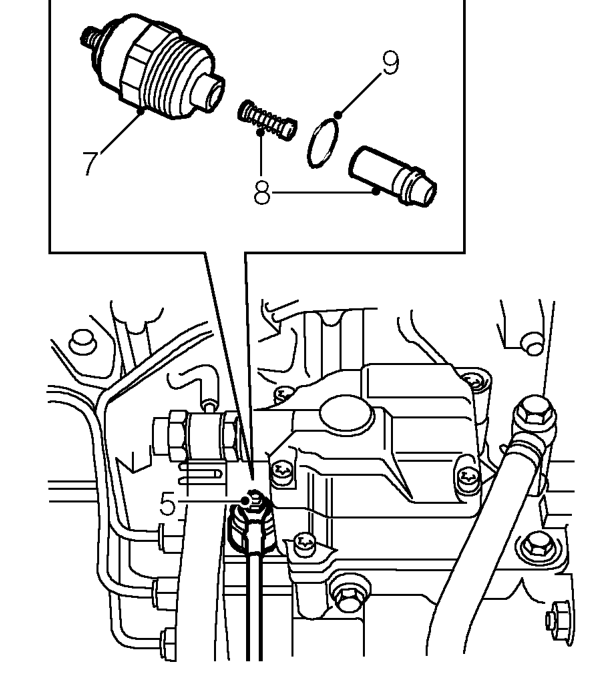

4. Position absorbent cloth around solenoid to absorb any fuel spillage.

5. Remove nut and disconnect lead from solenoid.
6. Using a 24 mm spanner, slacken solenoid from injection pump.
7. Unscrew and remove solenoid.
8. Collect solenoid plunger and spring.
9. Remove and discard ’O’ ring from solenoid.
