AIR INTAKE PIPE

Service repair no - 19.42.28

Remove

  1. Disconnect battery earth lead.

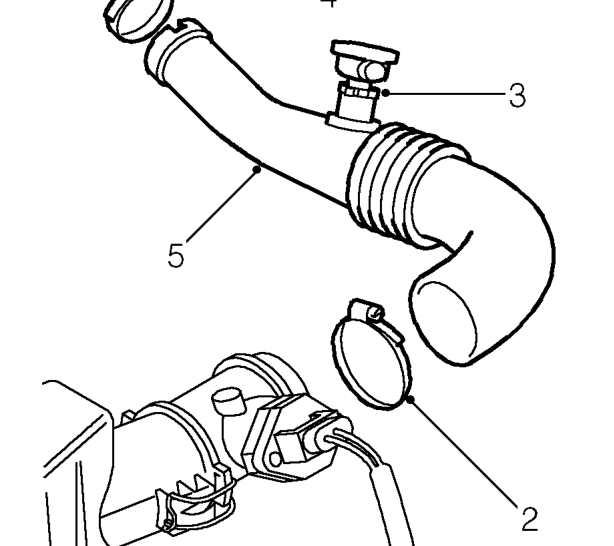

Air intake pipe – Disconnect battery earth lead.
  1. Slacken clip and disconnect pipe from MAF sensor.
  2. Slacken clip and disconnect crankcase pressure limiter valve from pipe.
  3. Slacken clip and disconnect pipe from turbocharger.
  4. Remove air intake pipe.

Refit

  1. Connect air intake pipe to turbocharger and tighten clip.
  2. Connect pipe to MAF sensor and tighten clip.
  3. Connect crankcase pressure limiter valve to pipe and tighten clip.
  4. Connect battery earth lead.

INJECTORS

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.
  3. Intercooler model: Remove plenum chamber. See this section.

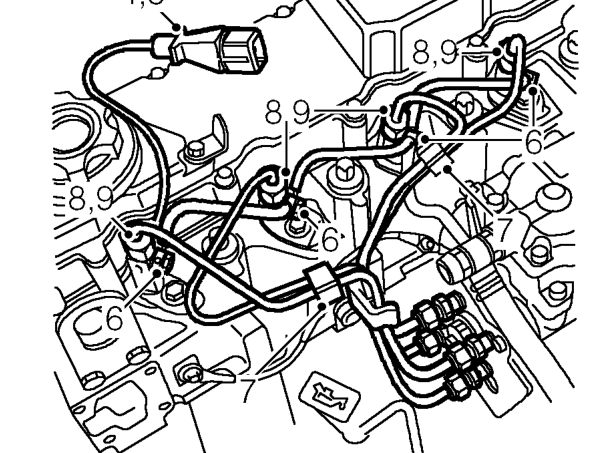

Injectors – Intercooler model: Remove plenum chamber. See this section.
  1. Remove needle lift sensor multiplug from injector pump mount.

NOTE: No. 1 injector incorporates the needle lift sensor.

  1. Disconnect needle lift sensor multiplug.
  2. Remove spill return hose banjo bolts and discard 2 sealing washers.

CAUTION: Position absorbent cloth around fuel injectors to absorb any fuel spillages.
