RHD models only

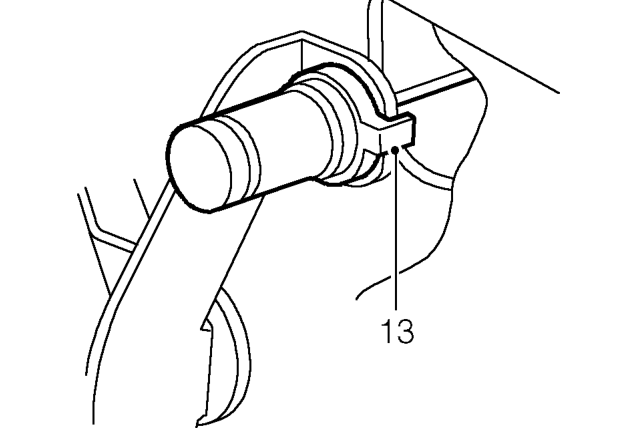

13. Depress nylon clip, disconnect throttle cable from pedal and remove cable.

Refit

1. Feed new cable through bulkhead and connect inner cable to pedal.

NOTE: This is made easier if the nylon clip is separated from the rest of the assembly and fitted first.

2. Smear rubber grease on both sides of the rubber seal and secure cable to bulkhead.

RHD models only

3. Locate expansion tank on body.
4. Fit bolts securing expansion tank to body and tighten to 9 Nm.

All models

5. Connect inner cable to throttle position sensor.
6. Adjust throttle cable. See Adjustments.
7. Clip heat shield to throttle position sensor.
8. Secure heat shield to mounting bracket.
9. Fit EGR solenoid valve and secure with nuts.
10. Fit engine acoustic cover. See BODY, Exterior fittings.

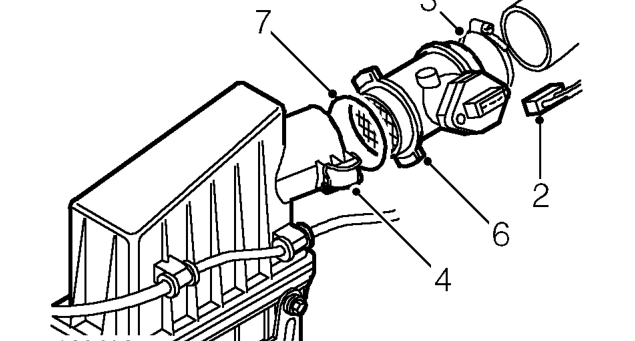

MASS AIR FLOW (MAF) SENSOR

Service repair no - 19.22.25

Remove

1. Disconnect battery earth lead.

2. Release clip and disconnect multiplug from MAF sensor.
3. Slacken clip securing air intake hose to MAF sensor and disconnect hose.
4. Release 2 clips securing MAF sensor to air cleaner.
5. Release MAF sensor from air cleaner.
6. Remove MAF sensor.
7. Remove and discard ’O’ ring.

Refit

1. Fit new ’O’ ring to MAF sensor.
2. Fit MAF sensor to air cleaner, secure with clips.
3. Connect intake hose to MAF sensor and tighten clip.
4. Connect multiplug to MAF sensor.
5. Connect battery earth lead.
