Engine management system - EDCRHD models only

Refit

  1. Feed new cable through bulkhead and connect inner cable to pedal.
  2. Smear rubber grease on both sides of the rubber seal and secure cable to bulkhead.
  3. Refit throttle cable to clips on the air cleaner, ECM and body brackets.
  4. Connect throttle cable to throttle cam.

RHD models only

  1. Locate expansion tank on body.
  2. Fit 2 bolts securing expansion tank to body and tighten to 9 Nm.

All models

  1. Adjust throttle cable. See Adjustments.
  2. Fit engine acoustic cover. See BODY, Exterior fittings.

THROTTLE CABLE - WITH INTERCOOLER

Service repair no - 19.20.06

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.

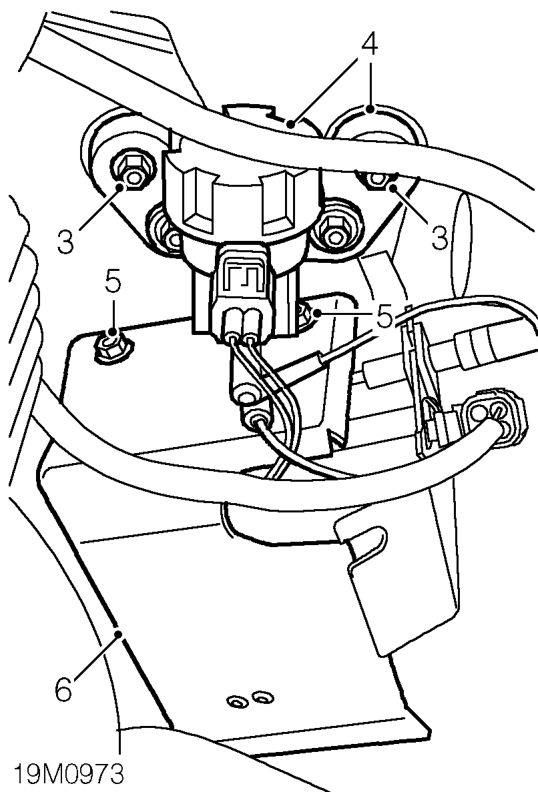

Throttle cable - with intercooler – Remove engine acoustic cover. See BODY, Exterior fittings.
  1. Remove 2 nuts securing EGR solenoid valve to mounting bracket.
  2. Position EGR solenoid aside.
  3. Remove 2 nuts securing heat shield to mounting bracket.
  4. Remove heat shield, secured by spring clip to throttle position sensor.
