Air cleaner element (page 2 of 2)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Engine management system - EDCAir cleaner element · page 2 of 2

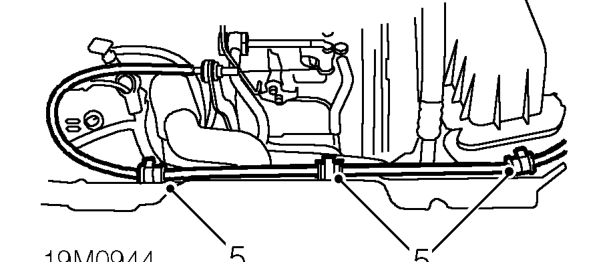

5. Release cable from clips on bonnet platform closing panel.

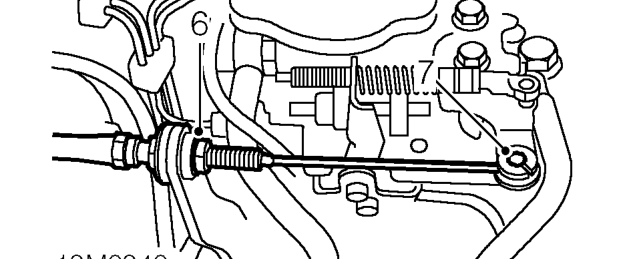

6. Remove cable adjusting nut from abutment bracket.
7. Release inner cable from lever on fuel injection pump.

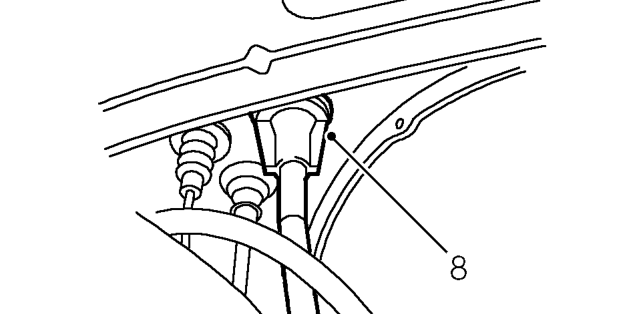

8. Release cable from bulkhead.

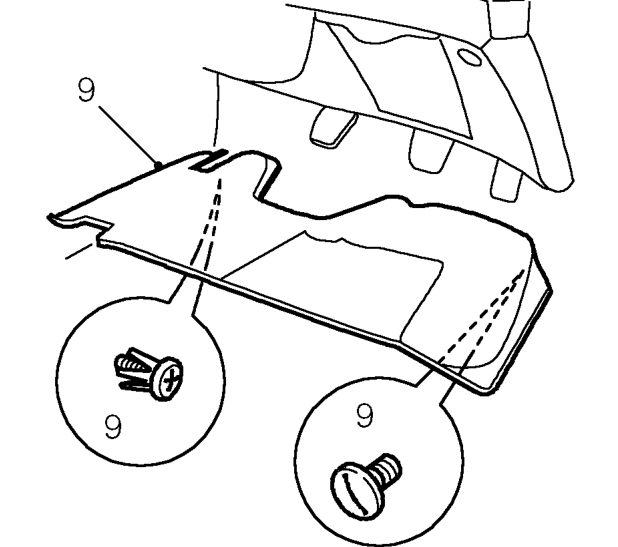

9. Remove trim screw and scrivet securing closing panel in drivers footwell. Remove panel.

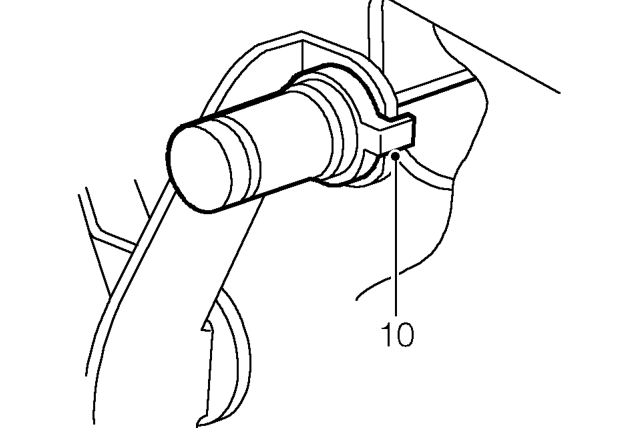

10. Depress nylon clip, disconnect throttle cable from pedal and remove cable.
