Injection pump - without intercooler

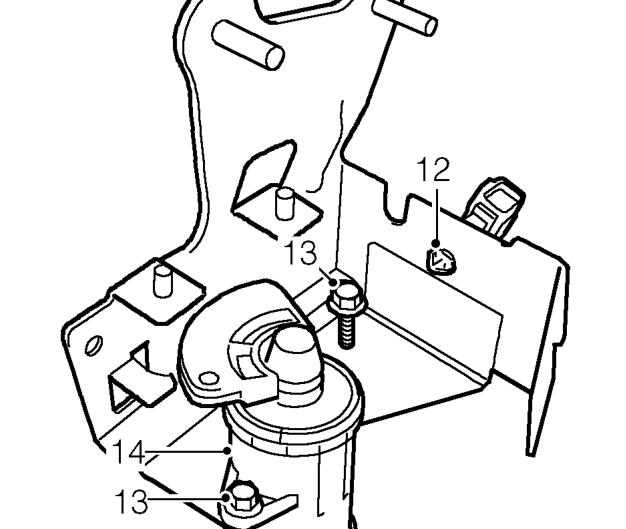

12. Release multiplug from mounting bracket.
13. Remove 2 bolts, nuts and washers securing throttle position sensor to mounting bracket.
14. Remove throttle position sensor from mounting bracket.

Refit

1. Position throttle position sensor to mounting bracket, fit 2 bolts nuts and washers.
2. Fit multiplug to mounting bracket.
3. Align bracket with body mounting secure with 2 bolts.
4. Connect throttle position multiplug.
5. Connect throttle cable to throttle position sensor.
6. Fit throttle cable abutment nut to mounting bracket.
7. Fit heat shield, secured with spring clip, to throttle position sensor.
8. Fit 2 nuts securing heat shield to mounting bracket.
9. Fit EGR solenoid valve and secure with 2 nuts.
10. Fit engine acoustic cover. See BODY, Exterior fittings.

INJECTION PUMP - WITHOUT INTERCOOLER

Service repair no - 19.30.07

Remove

1. Disconnect battery earth lead.

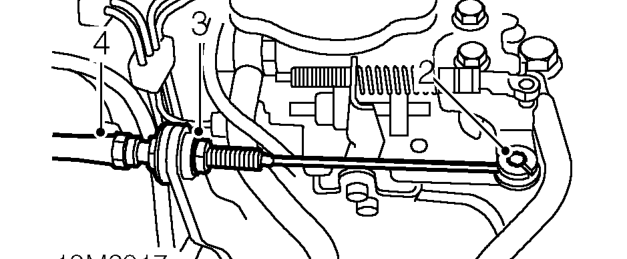

2. Release throttle cable from FIP control lever.
3. Remove nut securing throttle cable to abutment bracket.
4. Release throttle cable from abutment bracket and position aside.
5. Remove top hose.

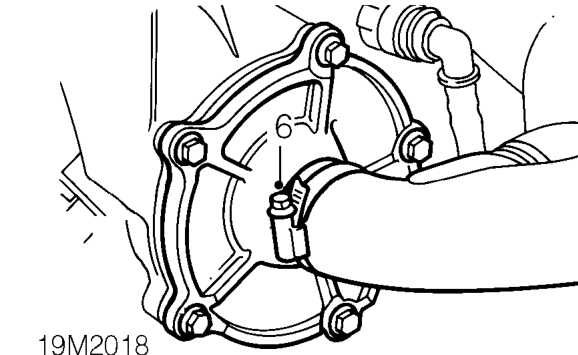

6. Slacken clip screw and disconnect hose from water pump.
7. Remove FIP timing belt. See ENGINE - ’L’ SERIES, Repairs.
